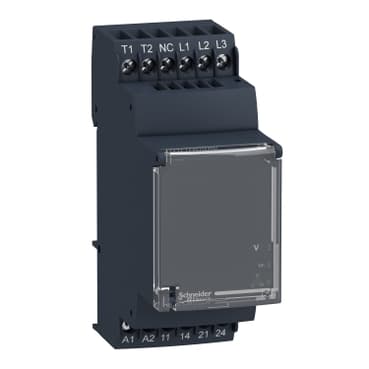

RM35TM50MW
Product ID:33460
Updated: 2026/4/3
Key Features
- 1Operate across 24-240V AC/DC for versatile system integration. 2、Control two devices independently with 2NO relay contacts. 3、Monitor temperature to prevent operation in unsafe conditions. 4、Leverage Schneider Electric's global reputation for automation quality. 5、Install easily on DIN rails with a modular 35mm width design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony Control Relays | Relay Type | Motor temperature control relay |
| Product or Component Type | Motor temperature control relay | Product Specific Application | For 3-phase supply |
| Relay name | RM35TM | Relay monitored parameters | Phase sequence<br />Motor temperature via PTC probe<br />Phase failure detection |
| Measurement range | 208...480 V AC<br />15...3100 Ohm | time delay | Without |
| Output contacts | 2 NO | Nominal output current | 5 A |
| Contacts type and composition | 2 NO | [Uc] control circuit voltage | <= 3.6 V temperature control circuit T1-T2 terminals open) |
| [Un] rated nominal voltage | 24...240 V AC/DC 50/60 Hz, non self-powered | Supply voltage limits | 20.4…264 V AC<br />20.4…264 V DC |
| Reset time | 10000 ms output | Maximum switching voltage | 250 V AC<br />250 V DC |
| Switching capacity in VA | 1250 VA | Minimum switching current | 10 mA 5 V DC |
| Maximum switching current | 5 A AC<br />5 A DC | Power consumption in VA | 0…4 VA 24...240 V AC |
| power consumption | 0.5 W DC | Control circuit frequency | 50...60 Hz +/- 10 % |
| Resistance across terminals | 602 mOhm | Measurement voltage limits | 176…528 V AC |
| delay at power up | 500 ms | Voltage range | 176...528 V |
| Response time | > 50 ms (input Y1 (contact Y1-T1) and push-button) | Short-circuit current | 0.007 A temperature sensing circuit T1-T2 terminals short circuited) |
| Maximum resistance | 1500 Ohm temperature sensor 68 °F (20 °C) | Tripping threshold | 3100 Ohm +/- 10 % temperature control circuit |
| Reset threshold | 1650 Ohm +/- 10 % temperature control circuit | Insulation resistance | > 500 MOhm 500 V DC between supply and relay output IEC 60255-5<br />> 500 MOhm 500 V DC between measurement and relay output IEC 60664-1<br />> 1 MOhm 500 V DC between supply and measurement IEC 60255-5<br />> 500 MOhm 500 V DC between supply and relay output IEC 60664-1<br />> 500 MOhm 500 V DC between measurement and relay output IEC 60255-5<br />> 1 MOhm 500 V DC between supply and measurement IEC 60664-1 |
| [Ui] rated insulation voltage | 400 V IEC 60664-1 | Supply frequency | 50/60 Hz +/- 10 % |
| Operating position | Any position without derating | Connections - terminals | Screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end<br />Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end<br />Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end<br />Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end |
| Tightening torque | 5.3…8.9 lbf.in (0.6…1 N.m) IEC 60947-1 | Housing material | Self-extinguishing plastic |
| Local signalling | for power ON LED (green)<br /> for phase of relay (R2) LED (yellow)<br /> for temperature of relay (R1) LED (yellow) | Mounting support | 35 mm symmetrical DIN rail conforming to IEC 60715 |
| Electrical durability | 10000 cycles | Mechanical durability | 30000000 cycles |
| Operating rate | <= 360 operations/hour full load | Utilisation category | AC-12 IEC 60947-5-1<br />AC-13 IEC 60947-5-1<br />AC-14 IEC 60947-5-1<br />AC-15 IEC 60947-5-1<br />DC-12 IEC 60947-5-1<br />DC-13 IEC 60947-5-1 |
| Width | 1.4 in (35 mm) | Net Weight | 0.29 lb(US) (0.13 kg) |
| Control Type | Without test button | Immunity to microbreaks | 20 ms 20.4 V |
| Electromagnetic compatibility | Emission standard for industrial environments conforming to IEC 61000-6-4<br />Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3<br />Immunity for industrial environments conforming to IEC 61000-6-2 | Standards | IEC 60255-6<br />IEC 60034-11-2 |
| Product Certifications | GL<br />UL<br />GOST<br />C-tick<br />CSA | marking | CE |
| Directives | 73/23/EEC - low voltage directive<br />89/336/EEC - electromagnetic compatibility | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient air temperature for operation | -4…122 °F (-20…50 °C) | Relative humidity | 95 % 131 °F (55 °C) IEC 60068-2-30 |
| Vibration resistance | 0.35 mm 5…57.6 Hz)IEC 60068-2-6<br />1 gn 57.6…150 Hz)IEC 60255-21-1 | Shock resistance | 15 gn 11 ms IEC 60255-21-1 |
| IP degree of protection | IP20 IEC 60529 terminals)<br />IP30 IEC 60529 casing) | Pollution degree | 3 IEC 60664-1 |
| Overvoltage category | III IEC 60664-1 | Dielectric test voltage | 2 kV AC 50 Hz, 1 min |
| Non-dissipating shock wave | 4 kV |
Specifications may be subject to change without notice
