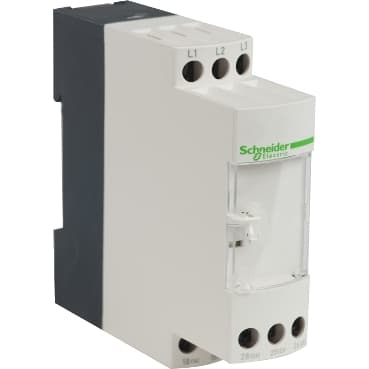

RM4TG20
Product ID:33250
Updated: 2026/4/3
Key Features
- 1Monitor three-phase networks reliably for industrial systems. 2、Adjust voltage thresholds precisely for optimal control. 3、Diagnose issues quickly with clear LED indicators. 4、Integrate seamlessly into panels via DIN rail mounting. 5、Ensure reliable performance in demanding environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony Relay | Relay Type | Control relay |
| Product Specific Application | For 3-phase supply | Relay name | RM4-T |
| Relay monitored parameters | Phase failure detection<br />Phase sequence | time delay | Without |
| Output contacts | 2 C/O | Contacts type and composition | 2 C/O |
| Poles description | 3P | [Ie] rated operational current | 2 A 158 °F (70 °C) 24 V DC-13 IEC 60947-5-1/1991<br />2 A 158 °F (70 °C) 24 V DC-13 VDE 0660<br />3 A 158 °F (70 °C) 115 V AC-15 IEC 60947-5-1/1991<br />3 A 158 °F (70 °C) 115 V AC-15 VDE 0660<br />3 A 158 °F (70 °C) 24 V AC-15 IEC 60947-5-1/1991<br />3 A 158 °F (70 °C) 24 V AC-15 VDE 0660<br />3 A 158 °F (70 °C) 250 V AC-15 IEC 60947-5-1/1991<br />3 A 158 °F (70 °C) 250 V AC-15 VDE 0660<br />0.1 A 158 °F (70 °C) 250 V DC-13 IEC 60947-5-1/1991<br />0.1 A 158 °F (70 °C) 250 V DC-13 VDE 0660<br />0.3 A 158 °F (70 °C) 115 V DC-13 IEC 60947-5-1/1991<br />0.3 A 158 °F (70 °C) 115 V DC-13 VDE 0660 |
| Maximum switching voltage | 440 V AC | Setting accuracy of time delay | 10 P |
| delay at power up | 650 ms | Maximum measuring cycle | 80 ms |
| [Ui] rated insulation voltage | 500 V IEC | Supply frequency | 50/60 Hz +/- 5 % |
| Operating position | Any position without derating | Connections - terminals | Screw terminals, 2 x 1.5 mm²flexible with cable end<br />Screw terminals, 2 x 2.5 mm²flexible without cable end |
| Tightening torque | 5.3…9.7 lbf.in (0.6…1.1 N.m) | Mechanical durability | 30000000 cycles |
| [Ith] conventional free air thermal current | 8 A | Switching capacity in mA | 10 mA 12 V |
| Switching voltage | 250 V AC | Contacts material | 90/10 silver nickel contacts |
| Number of cables | 2 | Height | 3.07 in (78 mm) |
| Width | 0.9 in (22.5 mm) | Depth | 3.1 in (80 mm) |
| Terminals description ISO n°1 | (L1-L2-L3)CO<br />(15-16-18)OC<br />(25-26-28)OC<br />ALT | Output relay state | Tripped, fault present |
| 9 mm pitches | 2.5 | Net Weight | 0.24 lb(US) (0.11 kg) |
| Terminals description ISO n°2 | (11-12-14)OC<br />ALT<br />(L1-L2-L3)CO<br />(21-22-24)OC | Electromagnetic compatibility | Electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2<br />Electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2<br />Resistance to electrostatic discharge - test level: 6 kV (contact) conforming to IEC 61000-4-2 level 3<br />Resistance to electrostatic discharge - test level: 8 kV (air) conforming to IEC 61000-4-2 level 3 |
| Standards | EN/IEC 60255-6 | Product Certifications | GL<br />UL<br />CSA |
| marking | CE | Directives | 73/23/EEC - low voltage directive<br />89/336/EEC - electromagnetic compatibility |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient air temperature for operation | -4…149 °F (-20…65 °C) |
| Relative humidity | 15…85 % 3K3 IEC 60721-3-3 | Vibration resistance | 0.35 ms 10…55 Hz)IEC 60068-2-6 |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27 | IP degree of protection | IP20 IEC 60529 terminals)<br />IP50 IEC 60529 casing) |
| Pollution degree | 3 IEC 60664-1 | Overvoltage category | III IEC 60664-1 |
| Dielectric test voltage | 2.5 kV | Non-dissipating shock wave | 4.8 kV |
| Resistance to electrostatic discharge | 6 kV contact IEC 61000-4-2 level 3<br />8 kV air IEC 61000-4-2 level 3 | Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 level 3 |
| Resistance to fast transients | 2 kV IEC 61000-4-4 level 3 | Disturbance radiated/conducted | CISPR 11 group 1 - class A<br />CISPR 22 - class A |
Specifications may be subject to change without notice
