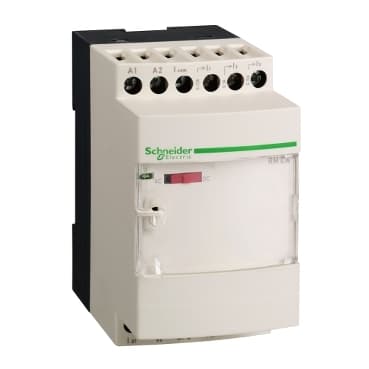

RMCA61BD
Product ID:33294
Updated: 2026/7/14
Key Features
- 1Convert electrical signals with high accuracy for reliable data transmission.
- 2Protect your system with overvoltage, reverse polarity, and short-circuit safeguards.
- 3Support versatile current inputs from 0 to 1.5A, 5A, and 15A AC/DC.
- 4Deliver flexible outputs of 0-10V, 0-20mA, or 4-20mA as needed.
- 5Meet global standards including IEC, UL, CSA, and CE for universal use.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony Analog | Product or Component Type | Voltage/current converter |
| Analogue input type | Current 0...1.5 A AC/DC 50/60 Hz<br />Current 0...15 A AC/DC 50/60 Hz<br />Current 0...5 A AC/DC 50/60 Hz | Analogue output type | Current 0...20 mA <= 500 Ohm by cabling<br />Current 4...20 mA <= 500 Ohm by cabling<br />Voltage 0...10 V >= 100 kOhm by cabling |
| Protection Type | Reverse polarity protection on output<br />Short-circuit protection on output<br />Overvoltage protection on output (+/- 30 V) | abnormal analogue output voltage | -15...0 V no input or input wire broken |
| abnormal analogue output current | -30…0 mA 0...20 mA no input or input wire broken<br />4…30 mA 4...20 mA no input or input wire broken | [Us] rated supply voltage | 24 V DC +/- 20 %, isolated |
| Current consumption | <= 70 mA voltage output<br /><= 90 mA current output | Local signalling | for power ON LED (green) |
| Measurement error | +/- 5 % of full scale20 °C temporary performance degradation when subject to electromagnetic interference) | Repeat accuracy | +/- 0.2 % full scale 20 °C<br />+/- 0.6 % full scale 60 °C |
| Temperature coefficient | 1000 ppm/°C 0...5 A<br />2000 ppm/°C 0...15 A<br />500 ppm/°C 0...1.5 A | clamping connection capacity | 2 x 1.5 mm²<br />1 x 2.5 mm² |
| Tightening torque | 5.3…9.7 lbf.in (0.6…1.1 N.m) | marking | CE |
| Surge withstand | 0.5 kV 1.2/50 µs IEC 61000-4-5 | [Ui] rated insulation voltage | 2 kV |
| Fixing mode | By screws (mounting plate)<br />Clip-on (35 mm symmetrical DIN rail) | Safety reliability data | B10d = 22108<br />MTTFd = 23.9 years |
| Net Weight | 0.33 lb(US) (0.15 kg) | Standards | IEC 60947-1<br />IEC 60584-1 |
| Product Certifications | CSA<br />UL<br />GL | IP degree of protection | IP20 terminal block)<br />IP50 housing) |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-1<br />1562 °F (850 °C) UL | Shock resistance | 50 gn 11 ms IEC 60068-2-27 |
| Vibration resistance | 5 gn 10…100 Hz)IEC 60068-2-6 | Resistance to electrostatic discharge | 6 kV in contact)IEC 61000-4-2 level 3<br />8 kV in air)IEC 61000-4-2 level 3 |
| Resistance to fast transients | 1 kV IEC 61000-4-4 on input-output)<br />2 kV IEC 61000-4-4 on power supply) | Disturbance radiated/conducted | CISPR 11<br />CISPR 22 group 1 - class B |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) mounting side by side<br />32…140 °F (0…60 °C) 2 cm spacing |
| Pollution degree | 2 IEC 60664-1 |
