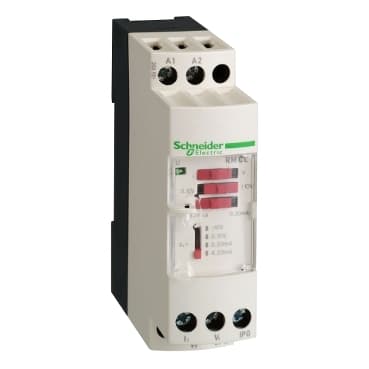

RMCL55BD
Product ID:33295
Updated: 2026/7/14
Key Features
- 1Ensure safe operation with an isolated 24V DC supply.
- 2Support diverse needs with 0-20mA and 4-20mA I/O ranges.
- 3Protect your system with overvoltage and short-circuit protection.
- 4Save panel space using a compact DIN rail design.
- 5Meet global standards with IEC, UL, and CSA certifications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony Analog | Product or Component Type | Voltage/current converter |
| Analogue input type | Current 0...20 mA<br />Current 4...20 mA<br />Voltage +/- 10 V DC<br />Voltage 0...10 V DC | Analogue output type | Current 0...20 mA <= 500 Ohm switchable<br />Current 4...20 mA <= 500 Ohm switchable<br />Voltage +/- 10 V >= 100 kOhm switchable<br />Voltage 0...10 V >= 100 kOhm switchable |
| Protection Type | Reverse polarity protection on output<br />Short-circuit protection on output<br />Overvoltage protection on output (+/- 30 V) | abnormal analogue output voltage | 11...15 V - 10...10 V no input or input wire broken voltage<br />11...15 V 0...10 V no input or input wire broken voltage<br />-15...0 V 0...20 mA no input or input wire broken current<br />-15...0 V 4...20 mA no input or input wire broken current |
| abnormal analogue output current | 22…30 mA 0...20 mA no input or input wire broken voltage<br />22…30 mA 4...20 mA no input or input wire broken voltage<br />-30…0 mA 0...20 mA no input or input wire broken current<br />4…30 mA 4...20 mA no input or input wire broken current | [Us] rated supply voltage | 24 V DC +/- 20 %, isolated |
| Current consumption | <= 70 mA voltage output<br /><= 90 mA current output | Local signalling | for power ON LED (green) |
| Measurement error | +/- 5 % of full scale20 °C temporary performance degradation when subject to electromagnetic interference) | Repeat accuracy | +/- 0.2 % full scale 20 °C<br />+/- 0.6 % full scale 60 °C |
| Temperature coefficient | 200 ppm/°C | clamping connection capacity | 2 x 1.5 mm²<br />1 x 2.5 mm² |
| Tightening torque | 5.3…9.7 lbf.in (0.6…1.1 N.m) | marking | CE |
| Surge withstand | 0.5 kV 1.2/50 µs IEC 61000-4-5 | [Ui] Rated Insulation Voltage | 2 kV |
| Fixing mode | By screws (mounting plate)<br />Clip-on (35 mm symmetrical DIN rail) | Safety reliability data | B10d = 20000<br />MTTFd = 21.6 years |
| Net Weight | 0.26 lb(US) (0.12 kg) | Standards | IEC 60947-1<br />IEC 60584-1 |
| Product Certifications | UL<br />GL<br />CSA | IP degree of protection | IP20 terminal block)<br />IP50 housing) |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-1<br />1562 °F (850 °C) UL | Shock resistance | 50 gn 11 ms IEC 60068-2-27 |
| Vibration resistance | 5 gn 10…100 Hz)IEC 60068-2-6 | Resistance to electrostatic discharge | 6 kV in contact)IEC 61000-4-2 level 3<br />8 kV in air)IEC 61000-4-2 level 3 |
| Resistance to fast transients | 1 kV IEC 61000-4-4 on input-output)<br />2 kV IEC 61000-4-4 on power supply) | Disturbance radiated/conducted | CISPR 22 group 1 - class B<br />CISPR 11 |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) mounting side by side<br />32…140 °F (0…60 °C) 2 cm spacing |
| Pollution degree | 2 IEC 60664-1 |
Specifications may be subject to change without notice
