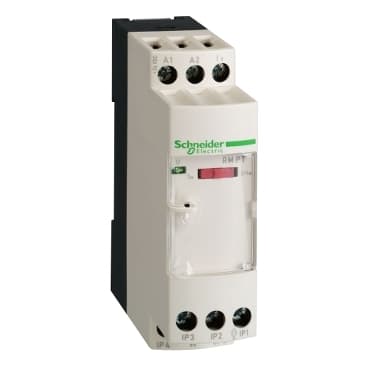

RMPT23BD
Product ID:33302
Updated: 2026/4/3
Key Features
- 1Convert Pt100 probes to 0-10V or 4-20mA signals. 2、Achieve high 0.2% output accuracy for reliable data. 3、Mount easily on DIN rails for quick installation. 4、Rely on robust IP20 protection in harsh environments. 5、Integrate seamlessly with Zelio Analog Converters.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony Analog | Product or Component Type | Converter for Optimum Pt100 probes |
| Analogue input type | Temperature probe - 100...100 °C/- 148...212 °F Pt 100 2, 3 or 4 wires | Analogue output type | Voltage 0...10 V >= 100 kOhm |
| Protection Type | Reverse polarity protection on power supply<br />Overvoltage protection on output (+/- 30 V)<br />Reverse polarity protection on output<br />Short-circuit protection on output | abnormal analogue output voltage | -15...-11 V no input or input wire broken<br />11...15 V no input or input wire broken |
| abnormal analogue output current | -30…0 mA no input or input wire broken<br />22…30 mA no input or input wire broken | [Us] Rated Supply Voltage | 24 V DC non isolated +/- 20 % |
| Current consumption | <= 40 mA voltage output<br /><= 60 mA current output | Local signalling | for power ON LED (green) |
| Measurement error | +/- 0.5 % of full scale 3 or 4 wires)20 °C temporary performance degradation when subject to electromagnetic interference)<br />+/- 1 % of full scale 2 wires)20 °C | Repeat accuracy | +/- 0.2 % full scale 20 °C<br />+/- 0.6 % full scale 60 °C |
| Temperature Coefficient | 150 ppm/°C | Maximum wiring resistance | 0.2 Ohm 2 wires |
| clamping connection capacity | 2 x 1.5 mm²<br />1 x 2.5 mm² | Tightening torque | 5.3…9.7 lbf.in (0.6…1.1 N.m) |
| marking | CE | Surge withstand | 0.5 kV 1.2/50 µs IEC 61000-4-5 |
| [Ui] rated insulation voltage | 2000 V | Fixing mode | Clip-on (35 mm symmetrical DIN rail)<br />Fixed (mounting plate) |
| Safety reliability data | B10d = 40564<br />MTTFd = 43.9 years | Net Weight | 0.26 lb(US) (0.12 kg) |
| Electromagnetic compatibility | Electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2<br />Electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 | Standards | IEC 60947-1<br />IEC 60584-1<br />DIN 43760<br />IEC 60751 |
| Product Certifications | CSA<br />UL<br />GL | IP degree of protection | IP20 terminal block)<br />IP50 housing) |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-1<br />1562 °F (850 °C) UL | Shock resistance | 50 gn 11 ms IEC 60068-2-27 |
| Vibration resistance | 5 gn 10…100 Hz)IEC 60068-2-6 | Resistance to fast transients | 1 kV IEC 61000-4-4 on input-output)<br />2 kV IEC 61000-4-4 on power supply) |
| Disturbance radiated/conducted | CISPR 22 group 1 - class B<br />CISPR 11 | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) mounting side by side<br />32…140 °F (0…60 °C) 2 cm spacing | Pollution degree | 2 IEC 60664-1 |
