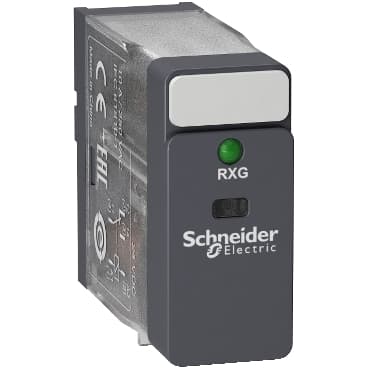

RXG13ND
Product ID:33347
Updated: 2026/4/3
Key Features
- 1Ensure reliable automation with consistent performance. 2、Switch high currents up to 10A for demanding loads. 3、Monitor status visually via the integrated LED indicator. 4、Enhance safety with 5000V AC reinforced insulation. 5、Save panel space using the compact plug-in design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony Relay | Series name | Interface relay |
| Product or Component Type | Plug-in relay | Device short name | RXG |
| Contacts type and composition | 1 C/O | [Ithe] conventional enclosed thermal current | 10 A -40…131 °F (-40…55 °C) |
| Local signalling | Flag | Status LED | With |
| [Ie] rated operational current | 10 A 30 V DC) UL<br />10 A 30 V DC) IEC<br />10 A 250 V AC) IEC<br />10 A 250 V AC) UL | Electrical durability | 100000 cycles NO resistive at 55 °C<br />100000 cycles NC resistive at 55 °C |
| Coil resistance | 6700 Ohm +/- 10 % | Shock resistance | 20 gn in operation<br />100 gn not in operation |
| Mounting position | Any position | [Uc] control circuit voltage | 60 V DC |
| Colour of cover | Standard | Drop-out voltage threshold | >= 0.1 Uc DC |
| Load current | 10 A 250 V AC | Minimum switching capacity | 500 mW at 100 mA, 5 V DC |
| Maximum switching capacity | 2500 VA | Torque Value | 7.08 lbf.in (0.8 N.m) |
| Contact resistance | 100 mOhm | Insulation resistance | 1000 MOhm at 500 V DC |
| Electrical Insulation Class | Class F | Mechanical durability | 10000000 cycles |
| Safety reliability data | B10d = 100000 | Operating time | 20 ms |
| Reset time | 20 ms | Overvoltage category | III |
| Maximum switching voltage | 250 V AC<br />30 V DC | Protection category | RT I |
| Operating rate | <= 1800 cycles/hour under load<br /><= 18000 cycles/hour no-load | Pollution degree | 2 |
| Utilisation coefficient | 20 % | [Ui] rated insulation voltage | 250 V IEC<br />300 V CSA<br />300 V UL |
| Dielectric strength | 1000 V AC between contacts with micro disconnection<br />5000 V AC between coil and contact with reinforced insulation | Test levels | Level A group mounting |
| Device presentation | Complete product | Contacts material | Silver alloy (AgSnO2In2O3) |
| Net Weight | 0.04 lb(US) (0.02 kg) | Standards | CSA C22.2 No 14<br />UL 508<br />IEC 61810-1 |
| Product Certifications | CSA<br />UL<br />EAC<br />CE | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | IP Degree of Protection | IP40 |
| Relative humidity | 10…85 % | Vibration resistance | 3 gn +/- 0.75 mm 10…150 Hz)in operation<br />5 gn +/- 0.75 mm 10…150 Hz)not in operation |
Specifications may be subject to change without notice
