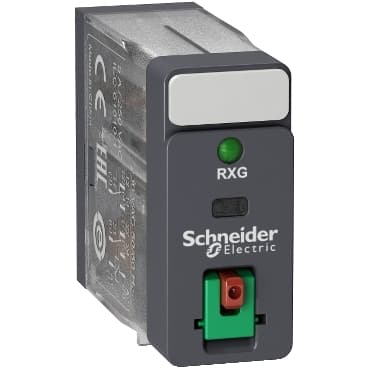

RXG22E7
Product ID:33380
Updated: 2026/4/3
Key Features
- 1Switch reliably with a high 5A current rating. 2、Utilize versatile 48V AC coil voltage compatibility. 3、Test easily with a lockable button and LED status indicator. 4、Mount compactly in IP40 enclosures on DIN rails. 5、Ensure durability with AgSnO2In2O3 contact material.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony Electromechanical Relays | Series name | Interface relay |
| Product or Component Type | Plug-in relay | Device short name | RXG |
| Contacts type and composition | 2 C/O | [Ithe] conventional enclosed thermal current | 5 A -40…131 °F (-40…55 °C) |
| Local signalling | Flag | Status LED | With |
| [Ie] rated operational current | 5 A 30 V DC) UL<br />5 A 30 V DC) IEC<br />5 A 250 V AC) IEC<br />5 A 250 V AC) UL | Electrical durability | 100000 cycles NO resistive at 55 °C<br />100000 cycles NC resistive at 55 °C |
| Coil resistance | 1100 Ohm +/- 10 % | Shock resistance | 20 gn in operation<br />100 gn not in operation |
| Mounting position | Any position | Average consumption in VA | 0.82 VA 60 Hz |
| Control circuit voltage limits | 0.8...1.1 Uc AC | [Uc] control circuit voltage | 48 V AC 50/60 Hz |
| Colour of cover | Standard | Drop-out voltage threshold | >= 0.3 Uc AC |
| Load current | 5 A 250 V AC | Minimum switching capacity | 50 mW at 10 mA, 5 V DC |
| Maximum switching capacity | 1250 VA | Control Type | Lockable test button |
| Torque Value | 7.08 lbf.in (0.8 N.m) | Contact resistance | 100 mOhm |
| Insulation resistance | 1000 MOhm at 500 V DC | Electrical Insulation Class | Class F |
| Mechanical durability | 10000000 cycles | Safety reliability data | B10d = 100000 |
| Operating time | 20 ms | Reset time | 20 ms |
| Overvoltage category | III | Maximum switching voltage | 250 V AC<br />30 V DC |
| Protection category | RT I | Operating rate | <= 1800 cycles/hour under load<br /><= 18000 cycles/hour no-load |
| Pollution degree | 2 | Utilisation coefficient | 20 % |
| [Ui] rated insulation voltage | 250 V IEC<br />300 V CSA<br />300 V UL | Dielectric strength | 1000 V AC between contacts with micro disconnection<br />5000 V AC between coil and contact with reinforced insulation<br />3000 V AC between poles with basic insulation |
| Test levels | Level A group mounting | Device presentation | Complete product |
| Contacts material | Silver alloy (AgSnO2In2O3) | Net Weight | 0.04 lb(US) (0.02 kg) |
| Standards | CSA C22.2 No 14<br />IEC 61810-1<br />UL 508 | Product Certifications | EAC<br />CE<br />UL<br />CSA<br />DNV-GL |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
| IP Degree of Protection | IP40 | Relative humidity | 10…85 % |
| Vibration resistance | 3 gn +/- 0.75 mm 10…150 Hz)in operation<br />5 gn +/- 0.75 mm 10…150 Hz)not in operation |
Specifications may be subject to change without notice
