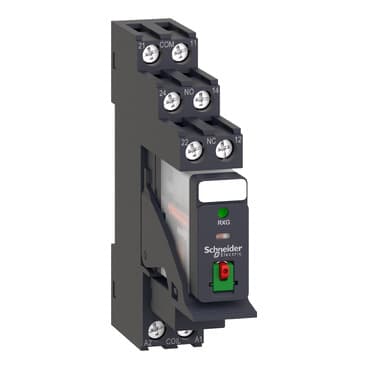

RXG22P7PV
Product ID:33508
Updated: 2026/4/3
Key Features
- 1Install pre-assembled units to save time and labor. 2、Integrate seamlessly with industrial machines and HVAC systems. 3、Test circuits safely using the lockable button and LED. 4、Meet global standards including IEC, UL, and CSA. 5、Ensure reliable switching with durable silver alloy contacts.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony Electromechanical Relays | Series name | Interface relay |
| Product or Component Type | Pre-assembled plug-in relay with socket | Device short name | RXG |
| Contacts type and composition | 2 C/O | [Ithe] conventional enclosed thermal current | 5 A |
| Status LED | With | [Ie] rated operational current | 5 A 30 V DC) UL<br />5 A 30 V DC) IEC<br />5 A 250 V AC) IEC<br />5 A 250 V AC) UL |
| Electrical durability | 100000 cycles resistive | Coil resistance | 23500 Ohm +/- 15 % |
| Shock resistance | 20 gn in operation<br />100 gn not in operation | Mounting position | Any position |
| Average coil consumption | 0.96 VA AC 50-60 Hz | [Uc] control circuit voltage | 230 V AC 50/60 Hz |
| Colour of cover | Transparent | Drop-out voltage threshold | >= 0.3 Uc AC |
| Load current | 5 A | Minimum switching capacity | 50 mW at 10 mA, 5 V DC |
| Maximum switching capacity | 1250 VA AC<br />150 W DC | Control Type | Lockable test button |
| Torque Value | 7.08 lbf.in (0.8 N.m)<br />7.0 lbf.in (0.8 N.m) | Contact resistance | 100 mOhm |
| Insulation resistance | 1000 MOhm at 500 V DC | Electrical Insulation Class | Class F |
| Mechanical durability | 10000000 cycles | Safety reliability data | B10d = 100000 |
| Operating time | 20 ms | Reset time | 20 ms |
| Connections - terminals | Connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end<br />Connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end<br />Connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end<br />Connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end | Overvoltage category | III |
| Maximum switching voltage | 250 V | Protection category | RT I |
| Operating rate | <= 1800 cycles/hour under load<br /><= 18000 cycles/hour no-load | Pollution degree | 2 |
| Utilisation coefficient | 20 % | [Ui] rated insulation voltage | 250 V IEC |
| Dielectric strength | 1000 V AC between contacts with micro disconnection<br />1300 V between terminals and base with basic insulation<br />3000 V between terminals and LTB area with basic insulation<br />3000 V AC between poles with basic insulation<br />5000 V AC between coil and contact with reinforced insulation | Test levels | Level A group mounting |
| Device presentation | Complete product | Contacts material | Silver alloy (AgSnO2In2O3) |
| Net Weight | 0.143 lb(US) (0.065 kg) | Standards | IEC 61810-1<br />CSA C22.2 No 14<br />UL 508<br />IEC 61984 |
| Product Certifications | EAC<br />CSA<br />UL<br />CE<br />DNV-GL | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | IP Degree of Protection | IP20 |
| Relative humidity | 10…85 % | Vibration resistance | 3 gn +/- 1.5 mm 10…150 Hz)in operation<br />5 gn +/- 1.5 mm 10…150 Hz)not in operation |
Specifications may be subject to change without notice
