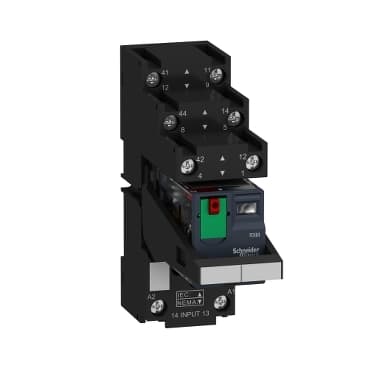

RXM2AB2P7PVS
Product ID:33493
Updated: 2026/4/3
Key Features
- 1Switch up to 12A for robust control in demanding applications. 2、Operate reliably at 230VAC for broad system compatibility. 3、Achieve 10 million cycles with durable AgNi contacts for longevity. 4、Integrate easily using plug-in mounting in compact automation panels. 5、Ensure safe operation with IP20 enclosure and RT I protection.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony Electromechanical Relays | Series name | Miniature |
| Product or Component Type | Pre-assembled plug-in relay with socket | Device short name | RXM |
| Contacts type and composition | 2 C/O | [Uc] control circuit voltage | 230 V AC 50/60 Hz |
| Status LED | With | Control Type | Lockable test button |
| Utilisation coefficient | 20 % | [Ui] rated insulation voltage | 250 V IEC |
| [Uimp] rated impulse withstand voltage | 4 kV 1.2/50 µs | Contacts material | AgNi |
| [Ie] rated operational current | 6 A 28 V DC) NC IEC<br />6 A 250 V AC) NC IEC<br />12 A 28 V DC) NO IEC<br />12 A 250 V AC) NO IEC | Minimum switching current | 10 mA |
| Continuous output current | 10 A | Maximum switching voltage | 250 V |
| Minimum switching voltage | 17 V | resistive rated load | 12 A 250 V AC<br />12 A 28 V DC |
| Maximum switching capacity | 3000 VA AC<br />336 W DC | Minimum switching capacity | 170 mW 10 mA, 17 V |
| Operating rate | <= 1200 cycles/hour under load<br /><= 18000 cycles/hour no-load | Mechanical durability | 10000000 cycles |
| Electrical durability | 100000 cycles resistive | average coil consumption | 1.2 W, AC |
| Drop-out voltage threshold | >= 0.3 Uc AC | operate time | 20 ms |
| release time | 20 ms | average coil resistance | 15000 Ohm 20 °C +/- 15 % |
| Rated operational voltage limits | 184...253 V AC | Safety reliability data | B10d = 100000 |
| Protection category | RT I | Test levels | Level A group mounting |
| Operating position | Any position | Sale per indivisible quantity | 30 |
| CAD overall width | 1.06 in (26.9 mm) | CAD overall height | 3.3 in (82.8 mm) |
| CAD overall depth | 3.16 in (80.35 mm) | Connections - terminals | Connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end<br />Connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end<br />Connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end<br />Connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end |
| Torque Value | 8.9 lbf.in (1 N.m) | Net Weight | 0.212 lb(US) (0.096 kg) |
| Device presentation | Complete product | Dielectric strength | 1300 V AC between contacts with micro disconnection<br />2000 V AC between coil and contact with basic insulation<br />2000 V AC between poles with basic insulation |
| Product Certifications | UL<br />Lloyd's<br />CE<br />CSA<br />GOST<br />IECEE CB Scheme | Standards | UL 508<br />IEC 61810-1<br />CSA C22.2 No 14<br />IEC 61984 |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient air temperature for operation | -40…131 °F (-40…55 °C) |
| Vibration resistance | 3 gn +/- 1 mm 10…150 Hz)5 cycles in operation<br />5 gn +/- 1 mm 10…150 Hz)5 cycles not operating | IP degree of protection | IP20 conforming to IEC 60529 |
| Shock resistance | 10 gnin operation<br />30 gnnot operating | Pollution degree | 2 |
