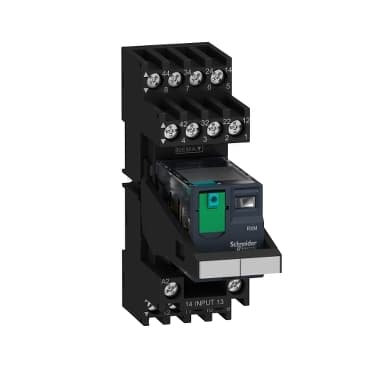

RXM4AB1BDPVM
Product ID:33699
Updated: 2026/4/3
Key Features
- 1Deliver 1200W of high-capacity power for demanding applications. 2、Integrate easily with a compact and space-saving design. 3、Achieve up to 92% efficiency to reduce operational energy costs. 4、Operate globally with a wide 100-240V AC input voltage range. 5、Ensure safe and reliable operation with built-in protection features.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony Electromechanical Relays | Series name | Miniature |
| Product or Component Type | Pre-assembled plug-in relay with socket | Device short name | RXM |
| Contacts type and composition | 4 C/O | [Uc] control circuit voltage | 24 V DC |
| Status LED | Without | Control Type | Lockable test button |
| Utilisation coefficient | 20 % | [Ui] rated insulation voltage | 250 V IEC |
| [Uimp] rated impulse withstand voltage | 2.5 kV 1.2/50 µs | Contacts material | AgNi |
| [Ie] rated operational current | 3 A 28 V DC) NC IEC<br />3 A 250 V AC) NC IEC<br />6 A 28 V DC) NO IEC<br />6 A 250 V AC) NO IEC<br />6 A 277 V AC) UL<br />8 A 30 V DC) UL | Minimum switching current | 10 mA |
| Continuous output current | 5 A | Maximum switching voltage | 250 V |
| Minimum switching voltage | 17 V | resistive rated load | 6 A 250 V AC<br />6 A 28 V DC |
| Maximum switching capacity | 1500 VA/168 W AC/DC | Minimum switching capacity | 170 mW 10 mA, 17 V |
| Operating rate | <= 1200 cycles/hour under load<br /><= 18000 cycles/hour no-load | Mechanical durability | 10000000 cycles |
| Electrical durability | 100000 cycles resistive | average coil consumption | 0.9 W, DC |
| Drop-out voltage threshold | >= 0.1 Uc DC | operate time | 20 ms |
| release time | 20 ms | average coil resistance | 650 Ohm 20 °C +/- 10 % |
| Rated operational voltage limits | 19.2...26.4 V DC | Safety reliability data | B10d = 100000 |
| Protection category | RT I | Test levels | Level A group mounting |
| Operating position | Any position | Sale per indivisible quantity | 30 |
| CAD overall width | 1.06 in (26.9 mm) | CAD overall height | 3.1 in (79 mm) |
| CAD overall depth | 3.09 in (78.45 mm) | Connections - terminals | Connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end<br />Connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end<br />Connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end<br />Connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end |
| Torque Value | 8.9 lbf.in (1 N.m) | Net Weight | 0.212 lb(US) (0.096 kg) |
| Device presentation | Complete product | Dielectric strength | 1300 V AC between contacts with micro disconnection<br />2000 V AC between coil and contact with basic insulation<br />2000 V AC between poles with basic insulation |
| Product Certifications | UL<br />Lloyd's<br />CE<br />CSA<br />GOST<br />IECEE CB Scheme | Standards | UL 508<br />IEC 61810-1<br />CSA C22.2 No 14<br />IEC 61984 |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient air temperature for operation | -40…131 °F (-40…55 °C) |
| Vibration resistance | 3 gn +/- 1 mm 10…150 Hz)5 cycles in operation<br />5 gn +/- 1 mm 10…150 Hz)5 cycles not operating | IP degree of protection | IP20 conforming to IEC 60529 |
| Shock resistance | 10 gnin operation<br />30 gnnot operating | Pollution degree | 2 |
Specifications may be subject to change without notice
