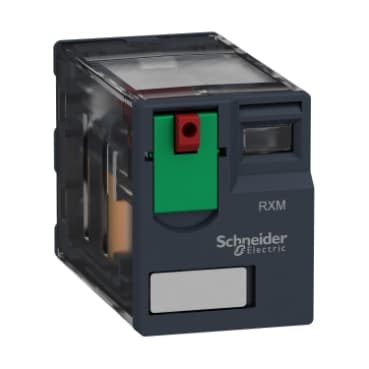

RXM4AB1E7
Product ID:33702
Updated: 2026/4/3
Key Features
- 1Deliver 1000W of high-performance power reliably. 2、Integrate easily with a compact, space-saving design. 3、Extend product lifespan through advanced thermal management. 4、Meet or exceed critical IEC 60950-1 safety standards. 5、Switch seamlessly across a wide range of industrial applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony Electromechanical Relays | Series name | Miniature |
| Product or Component Type | Plug-in relay | Device short name | RXM |
| Contacts type and composition | 4 C/O | [Uc] control circuit voltage | 48 V AC 50/60 Hz |
| Status LED | Without | Control Type | Lockable test button |
| Utilisation coefficient | 20 % | Shape of pin | Flat |
| [Ui] rated insulation voltage | 250 V IEC<br />300 V CSA<br />300 V UL | [Uimp] rated impulse withstand voltage | 2.5 kV 1.2/50 µs |
| Contacts material | AgNi | [Ie] rated operational current | 3 A 28 V DC) NC IEC<br />3 A 250 V AC) NC IEC<br />6 A 28 V DC) NO IEC<br />6 A 250 V AC) NO IEC<br />6 A 277 V AC) UL<br />8 A 30 V DC) UL |
| Continuous output current | 5 A | Maximum switching voltage | 250 V IEC |
| resistive rated load | 6 A 250 V AC<br />6 A 28 V DC | Maximum switching capacity | 1500 VA/168 W |
| Minimum switching capacity | 170 mW 10 mA, 17 V | Operating rate | <= 1200 cycles/hour under load<br /><= 18000 cycles/hour no-load |
| Mechanical durability | 10000000 cycles | Electrical durability | 100000 cycles resistive |
| average coil consumption in VA | 1.2 60 Hz | Average consumption | 1.2 VA 60 Hz |
| Drop-out voltage threshold | >= 0.15 Uc | operate time | 20 ms |
| release time | 20 ms | average coil resistance | 710 Ohm 20 °C +/- 15 % |
| Rated operational voltage limits | 38.4...52.8 V AC | Safety reliability data | B10d = 100000 |
| Protection category | RT I | Test levels | Level A group mounting |
| Operating position | Any position | CAD overall height | 3.1 in (79 mm) |
| CAD overall depth | 3.09 in (78.45 mm) | Net Weight | 0.082 lb(US) (0.037 kg) |
| Device presentation | Complete product | Dielectric strength | 1300 V AC between contacts with micro disconnection<br />2000 V AC between coil and contact with basic insulation<br />2000 V AC between poles with basic insulation |
| Product Certifications | UL<br />Lloyd's<br />CE<br />CSA<br />GOST<br />IECEE CB Scheme | Standards | CSA C22.2 No 14<br />IEC 61810-1<br />UL 508 |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient air temperature for operation | -40…131 °F (-40…55 °C) |
| Vibration resistance | 3 gn +/- 1 mm 10…150 Hz)5 cycles in operation<br />5 gn +/- 1 mm 10…150 Hz)5 cycles not operating | IP degree of protection | IP40 conforming to IEC 60529 |
| Shock resistance | 10 gnin operation<br />30 gnnot operating | Pollution degree | 2 |
Specifications may be subject to change without notice
