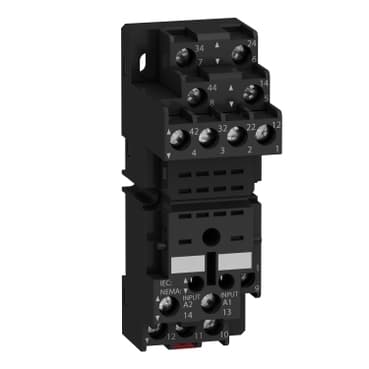

RXZE2M114
Product ID:33703
Updated: 2026/7/14
Key Features
- 1Reduce energy consumption with a high-efficiency design.
- 2Integrate easily into various systems due to compact size.
- 3Adapt to different environments with a wide input voltage range.
- 4Enhance system reliability using built-in protection features.
- 5Meet or exceed industry standards for quality and performance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony Electromechanical Relays<br />Harmony Timer Relays | Product compatibility | Plug-in relay RXM 2 C/O<br />Plug-in relay RXM 4 C/O<br />Plug-in relay REXL 2 C/O<br />Plug-in relay REXL 4 C/O<br />Plug-in relay 782H 4 C/O |
| Device short name | RXZ | [Ith] conventional free air thermal current | 10 A |
| Product or Component Type | Socket | Contacts type and composition | 4 C/O |
| [Ue] rated operational voltage | < 250 V IEC<br />< 300 V UL | Connections - terminals | Screw clamp terminals, 1 x 0.34...1 x 1 mm² AWG 22...AWG 17) flexible with cable end<br />Screw clamp terminals, 2 x 0.34...2 x 1 mm² AWG 22...AWG 17) flexible with cable end<br />Screw clamp terminals, 1 x 0.5...1 x 1.5 mm² AWG 20...AWG 16) solid without cable end<br />Screw clamp terminals, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end |
| Shape of pin | Flat | Tightening torque | < 1 N.m M3 |
| Fixing mode | By screw (panel)<br />Clip-on (35 mm symmetrical DIN rail) | Wire stripping length | 0.3 in (8 mm) |
| Contact terminal arrangement | Mixed | [Uimp] rated impulse withstand voltage | 4 kV |
| Overvoltage category | III | Pollution degree | 3 |
| Sale per indivisible quantity | 10 | Width | 1.2 in (30 mm) |
| Net Weight | 0.112 lb(US) (0.051 kg) | IP degree of protection | IP20 conforming to IEC 60529 |
| Dielectric strength | 2500 V | Standards | IEC 61984 |
| Product Certifications | UL<br />CSA<br />Lloyd's | marking | CE |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | -40…131 °F (-40…55 °C) |
Specifications may be subject to change without notice
