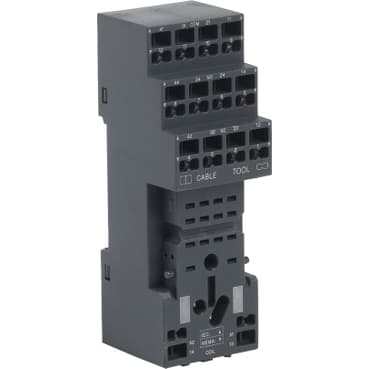

RXZE2S114S
Product ID:33708
Updated: 2026/7/14
Key Features
- 1Reduce energy consumption with a high-efficiency design.
- 2Integrate easily into various systems with a compact, lightweight form.
- 3Extend product lifespan via advanced thermal management.
- 4Ensure durability with robust construction and high-quality components.
- 5Guarantee reliability through compliance with international safety standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony Relay | Product compatibility | Plug-in relay RXM 2 C/O<br />Plug-in relay RXM 4 C/O |
| Device short name | RXZ | [Ith] conventional free air thermal current | 12 A 2 C/O relays<br />6 A 4 C/O relays |
| Product or Component Type | Socket | [Ue] rated operational voltage | < 250 V AC |
| Connections - terminals | Spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² AWG 20...AWG 16) flexible with cable end<br />Spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² AWG 20...AWG 16) solid without cable end | Shape of pin | Flat |
| Fixing mode | Clip-on (35 mm symmetrical DIN rail) | Contact terminal arrangement | Separate |
| Sale per indivisible quantity | 10 | Width | 1.2 in (31 mm) |
| Net Weight | 0.161 lb(US) (0.073 kg) | IP degree of protection | IP20 conforming to EN/IEC 60529 |
| Dielectric strength | 2500 V | Standards | IEC 61984 |
| Product Certifications | CSA<br />GOST<br />Lloyd's<br />UL | marking | CE |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | -40…131 °F (-40…55 °C) |
Specifications may be subject to change without notice
