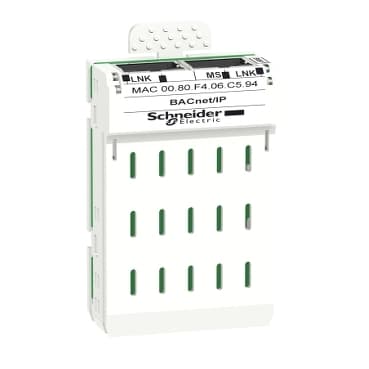

TM168BACW
Product ID:33723
Updated: 2026/4/4
Key Features
- 1Achieve high reliability and durability for mission-critical building operations. 2、Integrate seamlessly with BACnet IP for efficient system communication. 3、Ensure precise control and monitoring of your M168 base controllers. 4、Install easily with a compact design that fits various enclosures. 5、Meet international safety and compliance standards with certified components.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M168 logic controller | Product or Component Type | Communication module |
| communication port protocol | BACnet IP | Integrated connection type | Ethernet TCP/IP RJ45 - 2 twisted pairs - class D |
| Transmission rate | 10/100 Mbit/s | Communication service | COV notification<br />AV, BV, MSV, BACnet IP<br />BOOTP<br />FFTP<br />SNMP |
| Web services | Web server | Physical interface | RJ45 - 10BASE-T<br />RJ45 - 100BASE-TX |
| Memory description | User web page size 2 MB | Local signalling | for transmission activity 1 LED<br /> for reception activity (RX) 1 LED<br /> for module status 1 LED<br /> for error 1 LED |
| Product Compatibility | M168 logic controller | Net Weight | 0.097 lb(US) (0.044 kg) |
| Product Certifications | BTL<br />CSA<br />UL 508<br />UL 873<br />UL 60730-1 | Electromagnetic compatibility | EMC immunity EN/IEC 61000-6-1<br />EMC immunity level 2 EN/IEC 60730-1<br />Electrostatic discharge level 3B IEC 61000-4-2<br />Radiated RF fields level 3A IEC 61000-4-3<br />Electrical fast transient/burst immunity test level 4B IEC 61000-4-4<br />Surge immunity test level 3 IEC 61000-4-5<br />Conducted RF disturbances level 3A IEC 61000-4-6<br />Conducted EMC level 2 EN/IEC 60730-1<br />Conducted EMC EN/IEC 61000-6-3<br />EMC immunity IEC 61800-3<br />Conducted EMC IEC 61800-3 category C1 |
| marking | CE | IP Degree of Protection | IP20 |
| Ambient Air Temperature for Operation | -4…149 °F (-20…65 °C) | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 5…95 % without condensation | Pollution degree | 2 |
| Operating altitude | 0...6561.68 ft (0...2000 m) | Storage altitude | 0.0000000000…10000.0000000000 ft (0…3048 m) |
| Vibration resistance | 1.5 mm 3…13 Hz)<br />1 mm 13…23 Hz)<br />2 gn 23…150 Hz) | Shock resistance | 15 gn 11 ms |
Specifications may be subject to change without notice
