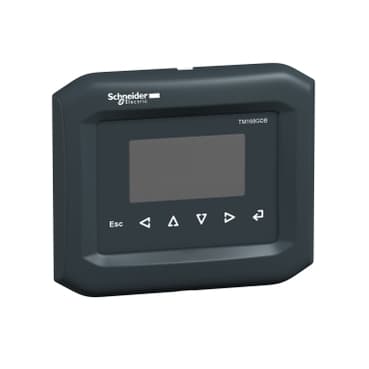

TM168GDB
Product ID:33733
Updated: 2026/7/15
Key Features
- 1Install the compact design easily to save panel space.
- 2Utilize the 128x64 pixel graphic display for clear system monitoring.
- 3Rely on the integrated RTC for accurate time-based operations.
- 4Configure the unit flexibly with M168 base controllers.
- 5Ensure compliance with relevant international safety standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M168 logic controller | Product or Component Type | Graphic display |
| Power Consumption in W | 5 W | Display Type | LCD |
| Display colour | Monochrome | Display Resolution | 128 x 64 pixels |
| [Us] rated supply voltage | 24 V AC/DC non isolated | Number of key | 6 |
| Supply | External source | Standards | UL 60730-1<br />CSA 60730-1<br />EN 61000-6-1<br />EN 60730-1<br />EN 61000-6-3 |
| marking | CE | Realtime clock | With <= 30 s/month 2 days |
| Local signalling | for power supply 1 LED (green)<br /> for bus activity RX (reception) 1 LED (red)<br /> for bus activity TX (transmission) 1 LED (red) | Memory type | Internal |
| Backup Time | 10 years | Number of read/write cycles | 1000000 |
| Supply voltage limits | 18…30 V | Immunity to microbreaks | 10 ms |
| Height | 5.2 in (133 mm) | Width | 4.4 in (112 mm) |
| Depth | 1.4 in (36 mm) | Net Weight | 0.53 lb(US) (0.24 kg) |
| Ambient Air Temperature for Operation | 32…131 °F (0…55 °C) | Ambient Air Temperature for Storage | -4…158 °F (-20…70 °C) |
| IP degree of protection | IP40 front face: | Pollution degree | 2 |
| Overvoltage category | III | Vibration resistance | 3.5 mm 5…8.4 Hz)EN/IEC 60028-2-6<br />1 gn 8.4…150 Hz)EN/IEC 60028-2-6 |
| Shock resistance | 15 gn 11 ms |
