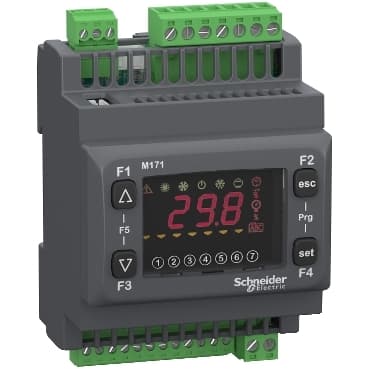

TM171OD14R
Product ID:33857
Updated: 2026/7/15
Key Features
- 1Power demanding applications with high-performance module reliability.
- 2Ensure stable operation using advanced thermal management systems.
- 3Integrate easily into panels with a compact, space-saving design.
- 4Connect to diverse systems with wide voltage/current compatibility.
- 5Protect personnel with enhanced electrical safety features.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M171/M172 | Product or Component Type | Controller |
| Product Specific Application | HVAC and pumping solution | Variant | Programmable |
| Total inputs/outputs | 14 | Discrete input number | 2 |
| Discrete output number | 3 relay outputs SPST with same common<br />1 relay outputs SPDT with same common | Discrete output current | 2 A relay |
| Analogue input number | 2 configurable<br />3 analog input NTC | Analogue output number | 2 voltage 0...10 V<br />2 PWM/PPM 20 kHz, 12 V, 35 mA<br />1 current 0...20 mA/4...20 mA |
| Number of port | 1 LAN expansion bus | Input/output number | 5 analog output<br />4 digital output<br />5 analog input |
| Discrete input logic | Sink or source (positive/negative) | Contacts usage | Volt-free contacts |
| Analogue input type | voltage 0...5 V ratiometric)<br /> voltage 0...10 V<br />NTC temperature probe - 50...100 °C 0.1 °C<br />Pt 1000 temperature probe - 50...400 °C 0.1 °C<br /> current 0...20 mA/4...20 mA<br /> voltage 0...1 V | Sensor power supply | 12 V DC 85 mA |
| [Us] rated supply voltage | 100...240 V | Width | 2.8 in (70.2 mm) |
| Height | 3.4 in (87 mm) | Depth | 2.4 in (61.6 mm) |
| Net Weight | 0.42 lb(US) (0.19 kg) |
