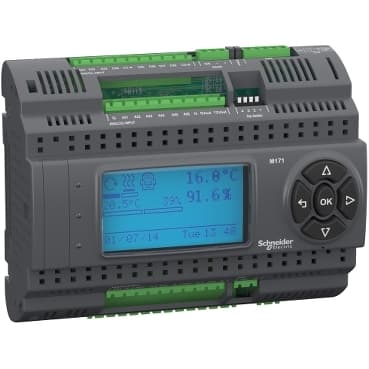

TM171PDM27R
Product ID:33585
Updated: 2026/4/4
Key Features
- 1Feature a compact 2DIN rail mounting design for space savings. 2、Offer 27 I/Os for extensive automation task capabilities. 3、Support Modbus protocol for seamless industrial system integration. 4、Enable straightforward programming with user-friendly SoMachineHVAC. 5、Provide robust connectivity with Ethernet and Modbus options.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M171/M172 | Product or Component Type | Programmable controllers |
| Product Specific Application | HVAC and pumping solution | Variant | Programmable |
| Total inputs/outputs | 27 | Discrete input number | 8 |
| Discrete output number | 3 relay outputs SPST with same common<br />2 relay outputs SPST with same common<br />2 relay outputs SPDT with independent common | Discrete output current | 8 A relay SPDT<br />5 A relay SPST |
| Analogue input number | 2 analog input NTC<br />4 configurable | Analogue output number | 3 voltage/current 4...20 mA or 0...10 V<br />2 open collector 1 kHz, 12 V, 35 mA |
| Number of port | 1 CAN port - screw terminal block<br />1 USB type A - USB type A female<br />1 USB type mini B - USB device port Mini-B<br />1 RS485 - screw terminal block Modbus serial link) | Input/output number | 6 analog input<br />5 analog output<br />8 digital input<br />7 digital output<br />1 high-speed counter |
| Discrete input logic | Sink or source (positive/negative) | Discrete input voltage | 24 V AC/DC<br />48 V DC |
| Discrete input current | 2.5 mA | input impedance | 20 kOhm |
| Analogue input type | voltage 0...5 V ratiometric)<br /> current 4...20 mA<br /> impedance 0...1500 hOhm<br /> impedance 0...300 daOhm<br />NTC temperature probe - 50...110 °C 0.1 °C extended)<br /> voltage 0...10 V<br />Pt 1000 temperature probe - 200...800 °C 0.1 °C<br />NTC temperature probe - 40...150 °C 0.1 °C | Sensor power supply | 5 V DC 50 mA<br />12 V DC 150 mA |
| [Us] rated supply voltage | 24 V +/- 20 % AC/DC<br />48 V +/- 20 % DC | Power consumption in W | 5 W 24...48 V AC/DC |
| Realtime clock | Built-in clock at 14…131 °F (-10…55 °C) | Display type | LCD display - 128 x 64 pixels |
| Overvoltage category | II | Local signalling | for programmable 1 LED (red)<br /> for programmable 1 LED (yellow)<br /> for programmable 1 LED (green) |
| Mounting Support | Flush mounting | Width | 6.3 in (160 mm) |
| Height | 3.8 in (96 mm) | Depth | 0.4 in (10 mm) |
| Net Weight | 0.71 lb(US) (0.32 kg) | Directives | 86/188/EEC - physical agents (noise) directive<br />2006/95/EC - low voltage directive |
| Standards | EN/IEC 60730 | Product Certifications | CE<br />CSA<br />cURus<br />EAC |
| Ambient air temperature for operation | 14…131 °F (-10…55 °C) UL 60730-1 | Ambient Air Temperature for Storage | -4…185 °F (-20…85 °C) |
| Relative humidity | 10…90 % non-condensing | IP degree of protection | IP20 |
| Pollution degree | 2 |
