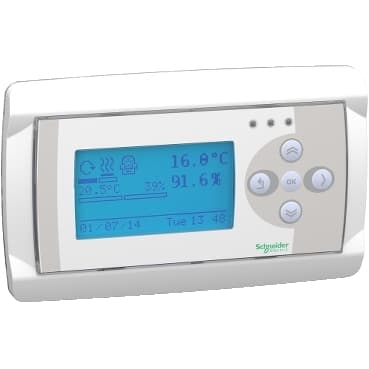

TM171PFE03
Product ID:33587
Updated: 2026/4/4
Key Features
- 1Integrate Modbus TCP and BACnet IP for seamless industrial network communication. 2、Monitor with 3 analog inputs using high-resolution NTC temperature probes. 3、Mount easily via DIN rail or panel for versatile installation anywhere. 4、Power reliably with 24V AC/48V DC wide voltage range for consistent operation. 5、Comply with IEC 60730 and UL 60730-1 for stringent HVAC safety standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M171/M172 | Product or Component Type | Programmable controllers |
| Product Specific Application | HVAC and pumping solution | Variant | Programmable |
| Total inputs/outputs | 3 | Analogue input number | 1 analog input NTC board)<br />1 analog input NTC |
| Number of port | 1 CAN port - screw terminal block<br />1 Ethernet - RJ45 Modbus TCP and BACnet IP with webserver)<br />1 RS485 - screw terminal block Modbus serial link or BACnet MS/TP)<br />1 | Input/output number | 3 analog input |
| Analogue input type | voltage 0...5 V ratiometric)<br /> current 4...20 mA<br />NTC temperature probe - 50...110 °C 0.1 °C extended)<br /> voltage 0...10 V<br />NTC temperature probe - 40...150 °C 0.1 °C | [Us] rated supply voltage | 24 V ±10% AC<br />48 V DC |
| Power consumption in W | 24 VA 24 V AC<br />15 W 20...38 V DC | Realtime clock | Without clock at -4…149 °F (-20…65 °C) |
| Display type | Without Display | Overvoltage category | II |
| Local signalling | without | Mounting Support | DIN rail<br />Panel mounting with accessory |
| Width | 2.8 in (72 mm) | Height | 4.3 in (110 mm) |
| Depth | 2.4 in (60.5 mm) | Net Weight | 0.42 lb(US) (0.19 kg) |
| Standards | EN/IEC 60730 | Product Certifications | CSA<br />RCM<br />cURus<br />CE<br />EAC |
| Ambient air temperature for operation | -4…149 °F (-20…65 °C) UL 60730-1 | Ambient Air Temperature for Storage | -4…185 °F (-20…85 °C) |
| Relative humidity | 10…90 % non-condensing | IP degree of protection | IP20 |
| Pollution degree | 2 |
Specifications may be subject to change without notice
