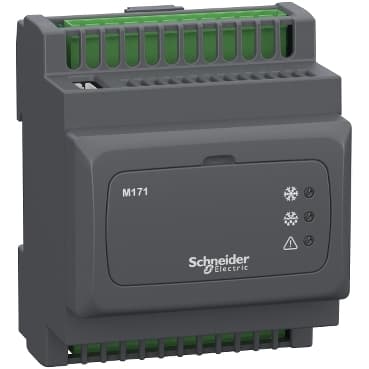

TM171VEVD4
Product ID:33590
Updated: 2026/7/15
Key Features
- 1Distribute high-capacity power in demanding environments.
- 2Utilize advanced thermal management for optimal performance.
- 3Install a compact design with enhanced reliability.
- 4Simplify installation and maintenance procedures.
- 5Meet or exceed industry safety and efficiency standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M171 | Product or Component Type | Controller |
| Number of port | 1 Modbus serial link - RS485 | Input/output number | 8 total)<br />4 analog input<br />2 digital input<br />2 digital output |
| Discrete input number | 2 | Discrete input logic | Sink or source (positive/negative) |
| Contacts usage | Volt-free contacts | Sensor power supply | 5 V DC<br />12 V DC |
| Discrete output number | 1 open collector<br />1 SPST | Analogue input number | 2 analog input NTC<br />2 analog input Pt 1000 4...20 mA or 0...5 V or 0...10 V |
| [Us] rated supply voltage | 24 V +/- 10 % AC/DC | Display Type | Without Display |
| Mounting Support | DIN rail | Width | 2.8 in (70.2 mm) |
| Height | 3.4 in (87 mm) | Depth | 2.4 in (61.6 mm) |
| marking | CE | Ambient air temperature for operation | 23…122 °F (-5…50 °C) |
| IP degree of protection | IP20 |
Specifications may be subject to change without notice
