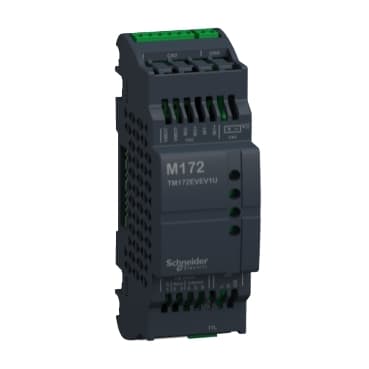

TM172EVEV1U
Product ID:33610
Updated: 2026/7/15
Key Features
- 1Ensure high reliability and durability for long-lasting performance.
- 2Install easily in tight spaces with a compact design.
- 3Protect systems with advanced overcurrent and short-circuit features.
- 4Meet international safety standards for secure operation.
- 5Manage robust power in industrial and commercial applications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M171/M172 | Product or Component Type | Expansion unit |
| Number of port | 1 CAN port - 1 removable 3-way screw connector | [Us] rated supply voltage | 24 V +/- 10 % AC<br />20...38 V DC |
| Power consumption in W | 9 W 24 V DC | Maximum power consumption in VA | 12 VA 24 V AC |
| Display Type | Without Display | Overvoltage category | I |
| Mounting Support | DIN rail | Width | 1.4 in (36 mm) |
| Height | 4.4 in (113 mm) | Depth | 2.4 in (60 mm) |
| Net Weight | 0.192 lb(US) (0.087 kg) | Product Certifications | CE<br />CSA<br />EAC<br />RCM<br />cURus |
| Standards | EN 60730-1<br />EN 60730-2-9<br />UL 60730-1<br />UL 60730-2-9<br />CAN/CSA-E60730-1<br />CSA E60730-2-9<br />IEC 6100-4-2<br />IEC 6100-4-3<br />IEC 6100-4-4<br />IEC 6100-4-5<br />IEC 6100-4-6<br />IEC 6100-4-11<br />EN 60068-2-27<br />EN 60068-2-6 Fc<br />UL94 (material V0) | Ambient air temperature for operation | -4…149 °F (-20…65 °C) |
| Ambient Air Temperature for Storage | -22…158 °F (-30…70 °C) | Relative humidity | 5…95 % non-condensing |
| IP degree of protection | IP20 | Pollution degree | 2 |
Specifications may be subject to change without notice
