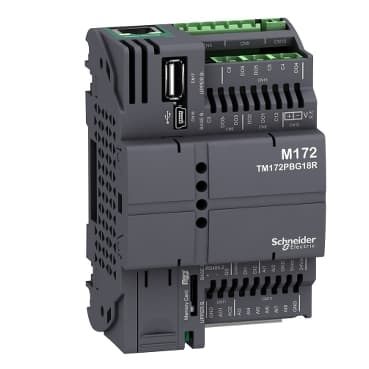

TM172PBG18R
Product ID:33620
Updated: 2026/7/15
Key Features
- 1Maximize uptime with 99.9% operational reliability.
- 2Reduce integration costs via broad industrial system compatibility.
- 3Install effortlessly in tight spaces with a compact, robust design.
- 4Ensure long-term performance in harsh environmental conditions.
- 5Lower total cost of ownership with minimal maintenance requirements.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M171/M172 | Product or Component Type | Programmable controllers |
| Product Specific Application | HVAC | Variant | Programmable |
| Total inputs/outputs | 18 | Discrete input number | 2 |
| Discrete output number | 1 relay outputs SPDT with independent common<br />2 relay outputs SPST with same common<br />3 relay outputs SPST with independent common | Discrete output current | 3 A relay SPST<br />3 A relay SPDT |
| Analogue input number | 8 configurable by pair | Analogue output number | 2 voltage/current 4...20 mA or 0...10 V or PWM (2 kHz) |
| Number of port | 1 CAN port - screw terminal block<br />1 USB type A - USB type A female<br />1 USB type mini B - USB device port Mini-B<br />2 RS485 - screw terminal block Modbus serial link or BACnet MS/TP)<br />1 Ethernet - RJ45 Modbus TCP and BACnet IP with webserver) | Input/output number | 2 analog output<br />6 digital output<br />8 analog input<br />2 digital input |
| Discrete input logic | Sink or source (positive/negative) up to 2 kHz | Discrete input voltage | 24 V AC/DC |
| Discrete input current | 5 mA AC/DC | input impedance | 10 kOhm |
| Analogue input type | NTC NK103 Beta 3977 temperature probe - 40...137 °C 0.1 °C 10 kOhm at 25 °C)<br />NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C 0.1 °C 10 kOhm at 25 °C)<br /> voltage 0...10 V 1 digit > 10 kOhm<br /> voltage 0...5 V 1 digit > 20 kOhm absolute or ratiometric)<br /> impedance 0...1500 hOhm 1 hOhm 10 kOhm<br /> impedance 0...300 daOhm 1 daOhm 1500 Ohm<br />PTC temperature probe - 55...150 °C 0.1 °C 1500 Ohm<br />Pt 1000 temperature probe - 200...850 °C 0.1 °C 1500 Ohm<br /> current 0...20 mA/4...20 mA 1 digit < 150 Ohm<br /> direct input 10 kOhm Dry contact) | Measurement accuracy | 0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit<br />0...20 mA 4...20 mA +/- 1 % of full scale +/- 1 digit<br />4...20 mA +/- 1 % of full scale +/- 1 digit<br />0...10 V +/- 1 % of full scale +/- 1 digit<br />0...5 V +/- 1 % of full scale +/- 1 digit<br />DaOhm 0...300 daOhm +/- 2.5 daOhm<br /> NTC NK103 Beta 3977 - 40...+110 °C +/- 1 °C<br /> NTC NK103 Beta 3977 110...137 °C +/- 1.9 °C<br /> NTC 103AT-2 Beta 3435 - 50…110 °C +/- 1 °C<br /> PTC - 55...155 °C +/- 1.1 °C<br /> Pt 1000 - 200...-100 °C +/- 10 °C<br /> Pt 1000 - 100...-50 °C +/- 2.5 °C<br /> Pt 1000 - 50...100 °C +/- 1.5 °C<br /> Pt 1000 100…400 °C +/- 2.4 °C<br /> Pt 1000 400...850 °C +/- 10 °C<br />HOhm 0...750 hOhm +/- 8.5 hOhm<br />HOhm 750 hOhm...1500 hOhm +/- 24 hOhm |
| Sensor power supply | 5 V DC 40 mA supplied by the controller<br />24 V DC 100 mA supplied by the controller | [Us] rated supply voltage | 24 V +/- 10 % AC<br />20...38 V DC |
| Power consumption in W | 11 W 24 V AC/DC | Realtime clock | Built-in clock, clock drift <= 30 s/month at -4…140 °F (-20…60 °C) |
| Display type | Without Display | Overvoltage category | II |
| Local signalling | for programmable 1 LED (red)<br /> for programmable 1 LED (yellow)<br /> for programmable 1 LED (green)<br /> for power 1 LED (green) | Mounting Support | Panel mounting with accessory<br />DIN rail |
| Width | 2.8 in (72 mm) | Height | 4.3 in (110 mm) |
| Depth | 2.4 in (60.5 mm) | Net Weight | 0.4 lb(US) (0.2 kg) |
| Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility | Standards | IEC 61000-4-5<br />IEC 61000-4-3<br />IEC 61000-4-2<br />EN 60068-2-27<br />EN 60730-1<br />EN 60068-2-6 Fc<br />UL 60730-1<br />UL 60730-2-9<br />IEC 61000-4-4<br />CAN/CSA-E60730-1<br />IEC 61000-4-11<br />IEC 61000-4-6<br />CSA E60730-2-9<br />EN 60730-2-9<br />UL94 (material V0) |
| Product Certifications | CSA<br />EAC<br />RCM<br />CE<br />cURus | Ambient air temperature for operation | -4…140 °F (-20…60 °C) |
| Ambient Air Temperature for Storage | -22…158 °F (-30…70 °C) | Relative humidity | 5…95 % non-condensing |
| IP degree of protection | IP20 | Pollution degree | 2 |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
Specifications may be subject to change without notice
