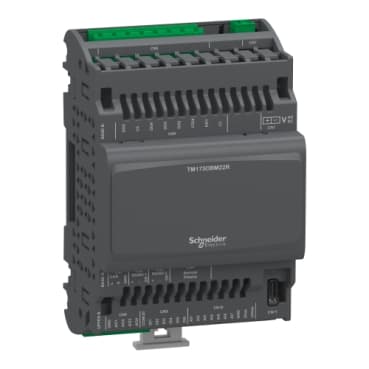

TM173OBM22R
Product ID:33798
Updated: 2026/7/15
Key Features
- 1Control motors with high performance for industrial applications.
- 2Manage speed and torque using advanced digital control.
- 3Operate reliably with a robust and long-lasting design.
- 4Integrate easily into existing automation systems.
- 5Enhance safety with built-in protection mechanisms.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M171/M172/M173 | Product or Component Type | Programmable controllers |
| Product Specific Application | HVAC and pumping solution | Variant | Programmable |
| Total inputs/outputs | 22 | Discrete input number | 6 |
| Discrete output number | 3 relay outputs SPST with same common<br />2 relay outputs SPST with independent common | Discrete output current | 5 A relay SPST |
| Analogue input number | 6 configurable by pair<br />1 configurable | Analogue output number | 1 voltage/current 0…10 V or 4…20 mA<br />3 voltage 0...10 V or PWM (10Hz...2 kHz) |
| Number of port | 1 CAN port - screw terminal block<br />1 USB type C<br />2 RS485 - screw terminal block Modbus serial link)<br />1 display port - TTL connector<br />1 communication module port | Input/output number | 6 digital input<br />5 digital output<br />7 analog input<br />4 analog output |
| Discrete input logic | Sink or source (positive/negative) | Contacts usage | Volt-free contacts |
| Discrete input voltage | 24 V AC/DC | Discrete input current | 2.5 mA |
| input impedance | 20 kOhm | Analogue input type | NTC 103AT-2 Beta 3435 temperature probe - 50...100 °C 0.1 °C 10 kOhm<br />Pt 1000 temperature probe - 50...400 °C 0.1 °C 2 kOhm<br /> voltage 0...10 V 0.001 V > 10 kOhm<br /> voltage 0...5 V 0.001 V 110 kOhm<br /> current 4...20 mA 13 bits 100 Ohm<br /> direct input > 10 kOhm |
| Measurement accuracy | NTC NK103 Beta 3977 - 40...+110 °C +/- 1 °C<br /> NTC NK103 Beta 3977 110...137 °C +/- 1.9 °C<br /> NTC 103AT-2 Beta 3435 - 50…110 °C +/- 1 °C<br /> PTC - 55...155 °C +/- 1.1 °C<br /> Pt 1000 - 100...-50 °C +/- 5 °C<br /> Pt 1000 - 50...100 °C +/- 1 °C<br /> Pt 1000 100…400 °C +/- 5 °C<br />0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit<br />0...20 mA 4...20 mA +/- 1 % of full scale +/- 1 digit<br />4...20 mA +/- 1 % of full scale +/- 1 digit<br />0...10 V +/- 1 % of full scale +/- 1 digit<br />0...5 V +/- 1 % of full scale +/- 1 digit<br />HOhm 0...1500 hOhm +/- 8.5 hOhm<br />DaOhm 0...300 daOhm +/- 2.5 daOhm | Sensor power supply | 5 V DC 50 mA supplied by the controller<br />24 V DC 125 mA supplied by the controller |
| [Us] rated supply voltage | 24 V +/- 10 % AC<br />20...38 V DC | Power consumption in W | 10 W 24 V AC/DC |
| Realtime clock | Built-in clock, clock drift <= 30 s/month at -4…149 °F (-20…65 °C) | Memory Type | 1 MB flash<br />380 kB RAM |
| Overvoltage category | II | Local signalling | for USB pendrive download status 1 LED (green) |
| Mounting Support | Panel mounting with accessory<br />DIN rail | Width | 2.8 in (72 mm) |
| Height | 4.3 in (110 mm) | Depth | 2.4 in (60 mm) |
| Net Weight | 0.379 lb(US) (0.172 kg) | Directives | 2014/30/EU - electromagnetic compatibility<br />2014/35/EU - low voltage directive |
| Standards | CAN/CSA-E60730-1<br />CSA E60730-2-9<br />EN 60068-2-27<br />EN 60068-2-6 Fc<br />EN 60730-1<br />EN 60730-2-9<br />UL 60730-1<br />UL 60730-2-9<br />IEC 61000-4-2<br />IEC 61000-4-3<br />IEC 61000-4-4<br />IEC 61000-4-5<br />IEC 61000-4-6<br />IEC 61000-4-11<br />UL94 (material V0) | Product Certifications | EAC (pending)<br />CE<br />cURus<br />CSA<br />RCM (pending) |
| Ambient air temperature for operation | -4…149 °F (-20…65 °C) UL 60730-1<br /> EN 60730-1<br /> EN 60730-2-9 | Ambient Air Temperature for Storage | -22…158 °F (-30…70 °C) |
| Relative humidity | 5…95 % non-condensing | IP degree of protection | IP20 conforming to EN/IEC 60730 |
| Pollution degree | 2 | Operating altitude | 0...6561.68 ft (0...2000 m) |
