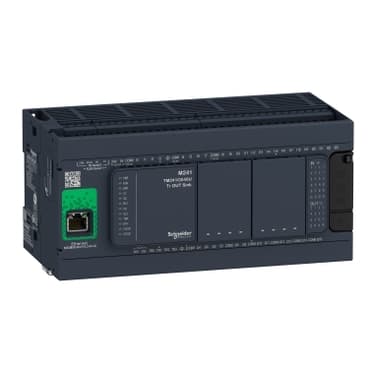

TM241CE40R
Product ID:33928
Updated: 2026/4/4
Key Features
- 1Deliver high-performance machine control with 64 MB RAM and 128 MB flash. 2、Ensure reliable operation in harsh industrial environments with robust construction. 3、Simplify integration and reduce lifecycle costs with wide compatibility. 4、Achieve energy efficiency and lower operational expenses. 5、Minimize downtime risk with advanced protection and certified durability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M241 | Product or Component Type | Logic controller |
| [Us] rated supply voltage | 100...240 V AC | Discrete input number | 24, discrete input 8 fast input IEC 61131-2 Type 1 |
| Discrete output type | Relay<br />Transistor | Discrete output number | 4 transistor 4 fast output<br />12 relay |
| Discrete output voltage | 5...125 V DC relay output<br />5...250 V AC relay output<br />24 V DC transistor output | Discrete output current | 0.1 A fast output (PTO mode) TR0...TR3)<br />2 A relay output Q4...Q15)<br />0.5 A transistor output TR0...TR3) |
| Discrete I/O number | 40 | Maximum number of I/O expansion module | 7 (local I/O-Architecture)<br />14 (remote I/O-Architecture) |
| Supply voltage limits | 85…264 V | Network Frequency | 50/60 Hz |
| Discrete input logic | Sink or source | Discrete input voltage | 24 V |
| Discrete input voltage type | DC | Voltage state 1 guaranteed | >= 15 V input |
| Voltage state 0 guaranteed | <= 5 V input | Discrete input current | 7 mA input |
| Input impedance | 4.7 kOhm input | Response time | 50 µs turn-on, I0...I15 input |
| Configurable filtering time | 1 µs fast input | Discrete output logic | Positive logic (source) |
| Output voltage limits | 125 V DC relay output<br />30 V DC transistor output<br />277 V AC relay output | Maximum output frequency | 1 kHz transistor output<br />20 kHz fast output (PWM mode)<br />100 kHz fast output (PLS mode) |
| Accuracy | +/- 0.1 % 0.02…0.1 kHz fast output<br />+/- 1 % 0.1…1 kHz fast output | Protection type | Short-circuit protection transistor output<br />Short-circuit and overload protection with automatic reset transistor output<br />Reverse polarity protection transistor output<br />Without protection relay output |
| Reset time | 10 ms automatic reset output<br />12 s automatic reset fast output | Memory capacity | 64 MB system memory RAM |
| Data backed up | 128 MB built-in flash memory backup of user programs | Data storage equipment | <= 16 GB SD card optional) |
| Battery type | BR2032 lithium non-rechargeable 4 year(s) | Backup time | 2 years 77 °F (25 °C) |
| Execution time for 1 KInstruction | 0.3 ms event and periodic task<br />0.7 ms other instruction | Application structure | 4 cyclic master tasks<br />8 event tasks<br />8 external event tasks<br />3 cyclic master tasks + 1 freewheeling task |
| Realtime clock | With | Clock drift | <= 60 s/month 77 °F (25 °C) |
| Positioning functions | PTO 4 100 kHz) | Counting input number | 4 fast input (HSC mode) 200 kHz<br />14 standard input 1 kHz |
| Control signal type | A/B 100 kHz fast input (HSC mode)<br />Pulse/direction 200 kHz fast input (HSC mode)<br />Single phase 200 kHz fast input (HSC mode) | Integrated connection type | Non isolated serial link serial 1 RJ45 RS232/RS485<br />Non isolated serial link serial 2 removable screw terminal block RS485<br />USB port mini B USB 2.0<br />Ethernet RJ45 |
| Supply | Serial 1)serial link supply 5 V, <200 mA | Transmission rate | 1.2...115.2 kbit/s (115.2 kbit/s by default) 49.2 ft (15 m) RS485<br />1.2...115.2 kbit/s (115.2 kbit/s by default) 9.8 ft (3 m) RS232<br />480 Mbit/s 9.8 ft (3 m) USB<br />10/100 Mbit/s Ethernet |
| Communication port protocol | Non isolated serial link Modbus master/slave | Port Ethernet | 10BASE-T/100BASE-TX - 1 copper cable |
| ethernet services | FDR<br />DHCP server via TM4 Ethernet switch network module<br />DHCP client embedded Ethernet port<br />SMS notifications<br />Updating firmware<br />SNMP client/server<br />Programming<br />NGVL<br />Monitoring<br />IEC VAR ACCESS<br />FTP client/server<br />Downloading<br />SQL client<br />Modbus TCP client I/O scanner<br />Ethernet/IP originator I/O scanner embedded Ethernet port<br />Ethernet/IP target, Modbus TCP server and Modbus TCP slave<br />Send and receive email from the controller based on TCP/UDP library<br />Web server (WebVisu & XWeb system)<br />OPC UA server<br />DNS client | Local signalling | for PWR 1 LED (green)<br /> for RUN 1 LED (green)<br /> for module error (ERR) 1 LED (red)<br /> for I/O error (I/O) 1 LED (red)<br /> for SD card access (SD) 1 LED (green)<br /> for BAT 1 LED (red)<br /> for SL1 1 LED (green)<br /> for SL2 1 LED (green)<br /> for bus fault on TM4 (TM4) 1 LED (red)<br /> for I/O state 1 LED per channel (green)<br /> for Ethernet port activity 1 LED (green) |
| Electrical connection | removable screw terminal block for inputs and outputs pitch 5.08 mm)<br /> removable screw terminal block for connecting the 24 V DC power supply pitch 5.08 mm) | Maximum cable distance between devices | Unshielded cable <164.04 ft (50 m) input<br />Shielded cable <32.8 ft (10 m) fast input<br />Unshielded cable <164.04 ft (50 m) output<br />Shielded cable <9.8 ft (3 m) fast output |
| Insulation | Between supply and internal logic 500 V AC<br />Non-insulated between supply and ground | marking | CE |
| Sensor power supply | 24 V DC 400 mA supplied by the controller | Surge withstand | 2 kV power lines (AC) common mode IEC 61000-4-5<br />2 kV relay output common mode IEC 61000-4-5<br />1 kV shielded cable common mode IEC 61000-4-5<br />1 kV power lines (AC) differential mode IEC 61000-4-5<br />1 kV relay output differential mode IEC 61000-4-5<br />1 kV input common mode IEC 61000-4-5<br />1 kV transistor output common mode IEC 61000-4-5 |
| Web services | Web server | Maximum number of connections | 8 Modbus server<br />8 SoMachine protocol<br />10 web server<br />4 FTP server<br />16 Ethernet/IP target<br />8 Modbus client |
| Number of server device(s) | 64 Modbus TCP<br />16 EtherNet/IP | Cycle time | 10 ms 16 EtherNet/IP<br />64 ms 64 Modbus TCP |
| Mounting support | Top hat type TH35-15 rail IEC 60715<br />Top hat type TH35-7.5 rail IEC 60715<br /> plate or panel with fixing kit | Height | 3.5 in (90 mm) |
| Depth | 3.7 in (95 mm) | Width | 7.5 in (190 mm) |
| Net Weight | 1.37 lb(US) (0.62 kg) | Standards | ANSI/ISA 12-12-01<br />CSA C22.2 No 142<br />CSA C22.2 No 213<br />IEC 61131-2:2007<br />Marine specification (LR, ABS, DNV, GL)<br />UL 508 |
| Product Certifications | RCM<br />cULus<br />CE<br />UKCA<br />DNV-GL<br />ABS<br />LR | Resistance to electrostatic discharge | 8 kV in air IEC 61000-4-2<br />4 kV on contact IEC 61000-4-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3<br />2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3<br />0.9 V/m (1 V/m) 2 GHz...3 GHz IEC 61000-4-3 | Resistance to fast transients | 2 kV IEC 61000-4-4 power lines)<br />2 kV IEC 61000-4-4 relay output)<br />1 kV IEC 61000-4-4 Ethernet line)<br />1 kV IEC 61000-4-4 serial link)<br />1 kV IEC 61000-4-4 input)<br />1 kV IEC 61000-4-4 transistor output) |
| Resistance to conducted disturbances | 10 V 0.15...80 MHz IEC 61000-4-6<br />3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL)<br />10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL) | Electromagnetic emission | Conducted emissions 120...69 dBµV/m QP power lines)10…150 kHz IEC 55011<br />Conducted emissions 63 dBμV/m QP power lines)1.5…30 MHz IEC 55011<br />Conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines)0.15…0.5 MHz IEC 55011<br />Conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines)0.5…300 MHz IEC 55011<br />Radiated emissions 40 dBμV/m QP class A 10 m)30…230 MHz IEC 55011<br />Conducted emissions 79...63 dBμV/m QP power lines)150…1500 kHz IEC 55011<br />Radiated emissions 47 dBμV/m QP class A 10 m)230…1000 MHz IEC 55011 |
| Immunity to microbreaks | 10 ms | Ambient air temperature for operation | 14…122 °F (-10…50 °C) vertical installation)<br />14…131 °F (-10…55 °C) horizontal installation) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Relative humidity | 10…95 %, without condensation in operation)<br />10…95 %, without condensation in storage) |
| IP degree of protection | IP20 with protective cover in place | Pollution degree | 2 |
| Operating altitude | 0...6561.68 ft (0...2000 m) | Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) |
| Vibration resistance | 3.5 mm 5…8.4 Hz symmetrical rail<br />3 gn 8.4…150 Hz symmetrical rail<br />3.5 mm 5…8.4 Hz panel mounting<br />3 gn 8.4…150 Hz panel mounting | Shock resistance | 15 gn 11 ms |
Specifications may be subject to change without notice
