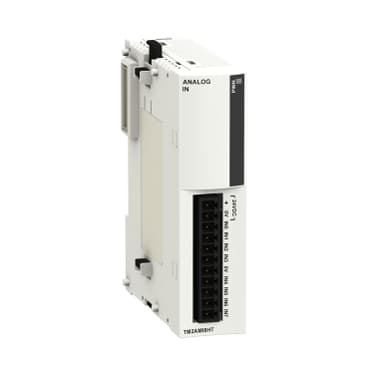

TM2AMI8HT
Product ID:34196
Updated: 2026/7/15
Key Features
- 1Ensure accurate data with 10-bit resolution and ±0.2% measurement error.
- 2Connect diverse sensors via compatible voltage (0-10V) and current (4-20mA) inputs.
- 3Withstand overloads up to 40 mA and 13 V for reliable operation.
- 4Facilitate quick installation using removable screw terminal blocks.
- 5Capture rapid data with a 160 ms sampling duration per channel.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M238 logic controller | Product or Component Type | I/O expansion module |
| Analogue input number | 8 | Analogue input type | current 4...20 mA non differential<br /> voltage 0...10 V non differential |
| Cross talk | <= 1 LSB | Range Compatibility | Twido<br />Advantys OTB |
| Analogue input resolution | 10 bits | LSB value | 19.5 µA current<br />9.7 mV voltage |
| Permissible continuous overload | 40 mA current<br />13 V voltage | Input impedance | >= 10 kOhm voltage<br />470 Ohm current |
| Sampling duration | 160 ms | Acquisition period | 160 ms per channel + 1 controller cycle time |
| Measurement error | +/- 0.2 % of full scale 25 °C | Temperature coefficient | +/-0.01 %FS/°C |
| Repeat accuracy | +/- 0.4 %FS | Non-linearity | +/- 0.002 %FS |
| Total error | +/-1 %FS | Type of Cable | Shielded cable |
| Insulation between channel and internal logic | Photocoupler | Supply | External supply |
| [Us] rated supply voltage | 24 V DC | Supply voltage limits | 20.4…28.8 V |
| Electrical connection | 1 removable screw terminal block power supply<br />1 removable screw terminal block sensors | Current consumption | 45 mA 24 V DC external<br />60 mA 5 V DC internal |
| Net Weight | 0.187 lb(US) (0.085 kg) | Dielectric strength | 2500 V between the I/O and internal logic |
| Width | 0.9 in (23.5 mm) | Depth | 2.8 in (70 mm) |
| Height | 3.5 in (90 mm) |
