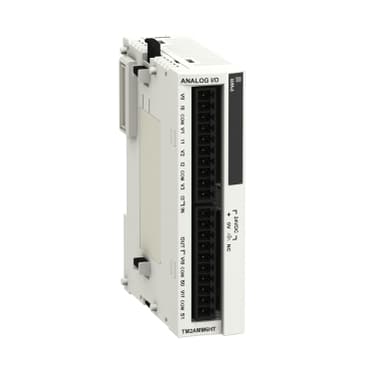

TM2AMM6HT
Product ID:34198
Updated: 2026/7/15
Key Features
- 1Ensure secure data transfer with shielded connections and photocoupler insulation.
- 2Achieve precise signal conversion using 12-bit resolution on all channels.
- 3Support versatile signals with four inputs and two outputs for 4-20mA/0-10V.
- 4Minimize power draw with low internal consumption of 60mA at 5VDC.
- 5Optimize cycle times with a fast 20ms conversion plus controller cycle.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M238 logic controller | Product or Component Type | I/O expansion module |
| Analogue input number | 4 | Input level | High level |
| Analogue input type | current 4...20 mA non differential<br /> voltage 0...10 V non differential | Analogue output number | 2 |
| Analogue output type | Current 4...20 mA<br />Voltage 0...10 V | Cross talk | <= 2 LSB |
| Range Compatibility | Twido<br />Advantys OTB | Analogue input resolution | 12 bits |
| Analogue output resolution | 12 bits | LSB value | 2.5 mV voltage voltage<br />4 µA current current |
| Permissible continuous overload | 40 mA current<br />13 V voltage | Input impedance | >= 1 Ohm voltage<br /><= 250 MOhm current |
| Load type | Resistive | Load impedance ohmic | >= 2000 Ohm voltage<br /><= 300 Ohm current |
| Stabilisation time | 20 ms | Conversion time | 20 ms + 1 controller cycle time |
| Sampling duration | 16 ms | Acquisition period | 16 ms per channel + 1 controller cycle time |
| Measurement error | +/- 0.5 % of full scale 0...10 V 25 °C<br />+/- 0.5 % of full scale 4...20 mA 25 °C<br />+/- 0.9 % of full scale 0...10 V 25 °C<br />+/- 0.9 % of full scale 4...20 mA 25 °C | Temperature coefficient | +/- 0.02 %FS/°C 0...10 V<br />+/- 0.02 %FS/°C 4...20 mA<br />+/-0.015 %FS/°C 0...10 V 0...10 V<br />+/-0.015 %FS/°C 4...20 mA 4...20 mA |
| Repeat accuracy | +/- 1 %FS output<br />+/-0.5 %FS input | Non-linearity | +/- 0.4 %FS current<br />+/- 0.4 %FS voltage<br />+/- 0.5 %FS current<br />+/- 0.5 %FS voltage |
| Output error | +/- 1 %FS | Output ripple | <= 1 LSB |
| Total error | +/- 1.5 %FS current<br />+/- 1.5 %FS voltage<br />+/-1 %FS current current<br />+/-1 %FS voltage voltage | Type of Cable | Shielded cable |
| Insulation between channel and internal logic | Photocoupler | Supply | External supply |
| [Us] rated supply voltage | 24 V DC | Supply voltage limits | 19.2…30 V |
| Electrical connection | 1 removable screw terminal block | Current consumption | 60 mA 5 V DC internal<br />80 mA 24 V DC external |
| Net Weight | 0.187 lb(US) (0.085 kg) | Dielectric strength | 1500 V between the I/O and the external supply circuit<br />800 V between I/O channel<br />800 V between the I/O and internal logic |
| Width | 0.9 in (23.5 mm) | Depth | 2.8 in (70 mm) |
| Height | 3.5 in (90 mm) |
Specifications may be subject to change without notice
