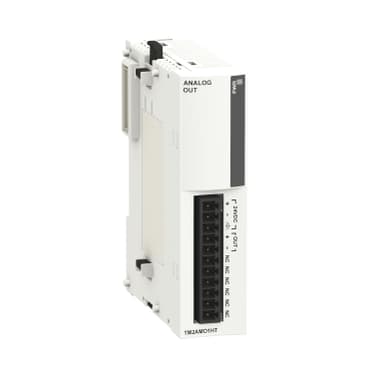

TM2AMO1HT
Product ID:34199
Updated: 2026/7/15
Key Features
- 1Deliver precise control for critical industrial automation tasks.
- 2Provide high-resolution 12-bit analog output signals.
- 3Support versatile 0-10V voltage and 4-20mA current outputs.
- 4Simplify installation with a removable screw terminal block.
- 5Ensure reliable performance with fast 10ms stabilization time.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M238 logic controller | Product or Component Type | Analog output module |
| Analogue output number | 1 | Analogue output type | Current 4...20 mA<br />Voltage 0...10 V |
| Range Compatibility | Advantys OTB<br />Twido | Analogue output resolution | 12 bits |
| LSB value | 2.5 mV voltage voltage<br />4.8 µA current current | Load type | Resistive |
| Load impedance ohmic | >= 2000 Ohm voltage<br /><= 300 Ohm current | Stabilisation time | 10 ms |
| Conversion time | 10 ms + 1 controller cycle time | Measurement error | +/- 0.2 % of full scale 25 °C |
| Temperature coefficient | +/-0.015 %FS/°C | Repeat accuracy | +/-0.5 %FS |
| Non-linearity | +/- 0.2 %FS | Output ripple | <= 1 LSB |
| Total error | +/-1 %FS | Type of Cable | Twisted shielded cable |
| Insulation between channel and internal logic | Photocoupler | Supply | External supply |
| [Us] rated supply voltage | 24 V DC | Supply voltage limits | 19.2…30 V |
| Electrical connection | 1 removable screw terminal block | Current consumption | 50 mA 5 V DC internal<br />40 mA 24 V DC external |
| Net Weight | 0.187 lb(US) (0.085 kg) | Dielectric strength | 500 V between the I/O and the external supply circuit<br />500 V between the I/O and internal logic |
| Width | 0.9 in (23.5 mm) | Depth | 2.8 in (70 mm) |
| Height | 3.5 in (90 mm) |
Specifications may be subject to change without notice
