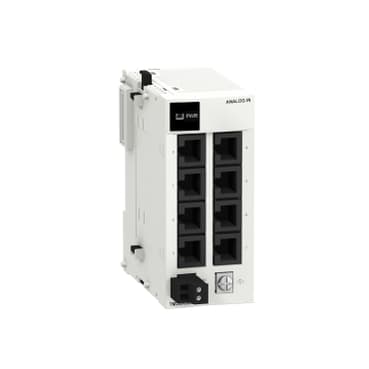

TM2ARI8LRJ
Product ID:34201
Updated: 2026/4/4
Key Features
- 1Achieve precise temperature measurements with 12-bit analog input resolution. 2、Monitor wide ranges using 200-600°C Pt100 and 50-200°C Pt1000 probes. 3、Ensure secure sensor connections via reliable RJ11 connectors. 4、Operate efficiently on 24 V DC with low <=140 mA current draw. 5、Benefit from durable design with removable terminal blocks.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M238 logic controller | Product or Component Type | Analog input module |
| Analogue input number | 8 | Analogue input type | Pt 100 temperature probe - 200...600 °C non differential<br />Pt 1000 temperature probe - 50...200 °C non differential |
| Range Compatibility | Advantys OTB<br />Twido | Analogue input resolution | 12 bits |
| LSB value | 0.006 °C Pt 1000<br />0.2 °C Pt 100 | Input impedance | >= 10 kOhm |
| Sampling duration | 160 ms | Acquisition period | 320 ms per group of channel + 1 controller cycle time |
| Measurement error | +/- 0.3 % of full scale Pt 1000 25 °C<br />+/- 0.5 % of full scale Pt 100 25 °C | Temperature coefficient | +/-0.01 %FS/°C |
| Repeat accuracy | +/- 0.1 °C | Total error | 1 °C Pt 1000<br />4 °C Pt 100 |
| Insulation between channel and internal logic | Photocoupler | Supply | External supply |
| [Us] rated supply voltage | 24 V DC | Supply voltage limits | 19.2…30 V |
| Electrical connection | 1 removable screw terminal block power supply<br />8 connectors RJ11 sensors | Current consumption | <= 140 mA 24 V DC external<br />90 mA 5 V DC internal |
| Net Weight | 0.42 lb(US) (0.19 kg) | Dielectric strength | 500 V between the I/O and the external supply circuit<br />2500 V between the I/O and internal logic |
| Width | 1.5 in (39.1 mm) | Depth | 2.8 in (70 mm) |
| Height | 3.5 in (90 mm) |
Specifications may be subject to change without notice
