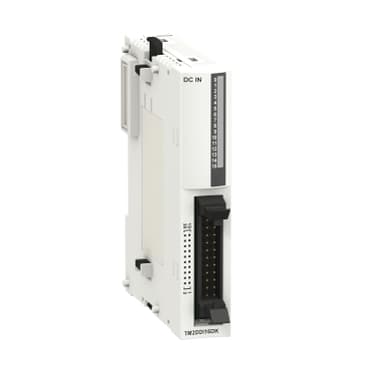

TM2DDI16DK
Product ID:34205
Updated: 2026/7/15
Key Features
- 1Acquire 16 high-density digital inputs for efficient space use.
- 2Integrate seamlessly with Modicon M238 and other Schneider systems.
- 3Ensure reliable operation with robust 24VDC industrial compatibility.
- 4Reduce downtime through certified, high-quality construction.
- 5Secure your investment with an official Schneider Electric guarantee.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M238 logic controller | Product or Component Type | Discrete input module |
| Discrete input number | 16 | Discrete input voltage | 24 V |
| Discrete input voltage type | DC | Range Compatibility | Advantys OTB<br />Twido |
| input voltage limits | 20.4...28.8 V | Discrete input logic | Sink or source |
| Discrete input current | 5 mA | input impedance | 4.4 kOhm |
| Number of common point | 1 | Response time | 4 ms at state 0<br />4 ms at state 1 |
| Isolation between channels | None | Isolation between channels and internal logic | 500 V for 1 minute |
| Current consumption | 35 mA 5 V DC at state 1 for all input | Local signalling | 2 display blocks |
| Electrical connection | 1 connector HE10 | Mounting Support | 35 mm symmetrical DIN rail |
| Net Weight | 0.2 lb(US) (0.1 kg) | Depth | 3.2 in (81.3 mm) |
| Height | 3.5 in (90 mm) | Width | 0.8 in (21.4 mm) |
Specifications may be subject to change without notice
