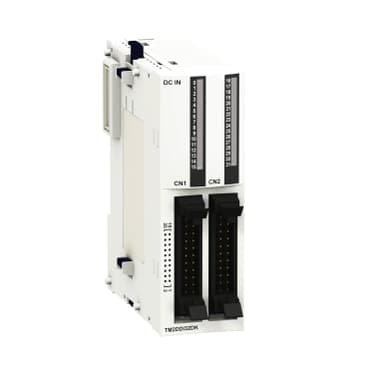

TM2DDI32DK
Product ID:34207
Updated: 2026/7/15
Key Features
- 1Deliver 32 digital inputs with a 4 ms response time.
- 2Ensure compatibility with Modicon M238 and Twido/Advantys OTB.
- 3Operate efficiently at 24 V DC with 5 mA input current.
- 4Mount securely using 35 mm symmetrical DIN rail support.
- 5Receive reliable coverage with a 2-year manufacturer warranty.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M238 logic controller | Product or Component Type | Discrete input module |
| Discrete input number | 32 | Discrete input voltage | 24 V |
| Discrete input voltage type | DC | Range Compatibility | Twido<br />Advantys OTB |
| input voltage limits | 20.4...28.8 V | Discrete input logic | Sink or source |
| Discrete input current | 5 mA | input impedance | 4.4 kOhm |
| Number of common point | 2 | Response time | 4 ms at state 0<br />4 ms at state 1 |
| Isolation between channels | None | Isolation between channels and internal logic | 500 V for 1 minute |
| Current consumption | 65 mA 5 V DC at state 1 for all input | Local signalling | 2 display blocks |
| Electrical connection | 1 connector HE10 | Mounting Support | 35 mm symmetrical DIN rail |
| Net Weight | 0.179 lb(US) (0.081 kg) | Depth | 3.2 in (81.3 mm) |
| Height | 3.5 in (90 mm) | Width | 1.2 in (29.7 mm) |
Specifications may be subject to change without notice
