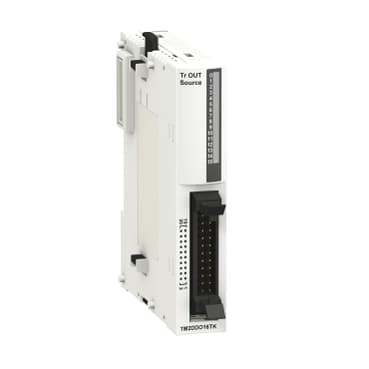

TM2DDO16TK
Product ID:34209
Updated: 2026/7/15
Key Features
- 1Deliver 16 reliable transistor outputs for diverse control tasks.
- 2Operate on 24V DC for broad industrial system compatibility.
- 3Mount easily on standard 35mm DIN rails.
- 4Achieve fast 450 µs state change response for precise control.
- 5Integrate seamlessly with Modicon M238, Twido, and Advantys OTB.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M238 logic controller | Product or Component Type | Discrete output module |
| Discrete output number | 16 | Discrete output type | Transistor |
| Discrete output voltage | 24 V | Discrete output logic | Source |
| Discrete output current | 0.4 A | Range Compatibility | Twido<br />Advantys OTB |
| Output voltage limits | 20.4...28.8 V | Current per channel | 0.48 A |
| Maximum current per output common | 2 A | Number of common point | 1 |
| Response time | 450 µs from state 0 to state 1<br />450 µs from state 1 to state 0 | [Ures] residual voltage | 1 V at state 1 |
| Maximum leakage current | 0.1 mA | Maximum inductive load | 10 mH |
| Maximum tungsten load | 9.6 W | Short-circuit protection | With automatic reactivaton |
| Overload protection | With automatic reactivaton | Isolation between channels | None |
| Isolation between channels and internal logic | 500 V for 1 minute | Current consumption | 15 mA 5 V DC at state 1 for all output<br />20 mA 24 V DC at state 1 for all output |
| Local signalling | 2 display blocks | Electrical connection | 1 connector HE10 |
| Mounting Support | 35 mm symmetrical DIN rail | Net Weight | 0.15 lb(US) (0.07 kg) |
| Depth | 3.2 in (81.3 mm) | Height | 3.5 in (90 mm) |
| Width | 0.8 in (21.4 mm) |
