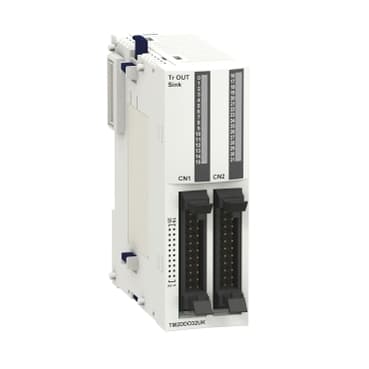

TM2DDO32UK
Product ID:34212
Updated: 2026/7/15
Key Features
- 1Deploy 32 high-reliability transistor outputs for robust control.
- 2Utilize 24V voltage for broad system compatibility.
- 3Achieve fast control with a 300μs response time.
- 4Simplify installation with standard DIN rail mounting.
- 5Secure your investment with a 2-year warranty.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M238 logic controller | Product or Component Type | Discrete output module |
| Discrete output number | 32 | Discrete output type | Transistor |
| Discrete output voltage | 24 V | Discrete output logic | Sink |
| Discrete output current | 0.1 A | Range Compatibility | Advantys OTB<br />Twido |
| Output voltage limits | 20.4...28.8 V | Current per channel | 0.12 A |
| Maximum current per output common | 1 A | Number of common point | 2 |
| Response time | 300 µs from state 0 to state 1<br />300 µs from state 1 to state 0 | [Ures] residual voltage | 1 V at state 1 |
| Maximum tungsten load | 8 W | Short-circuit protection | Without |
| Overload protection | Without | Isolation between channels | None |
| Isolation between channels and internal logic | 500 V for 1 minute | Current consumption | 20 mA 5 V DC at state 1 for all output<br />70 mA 24 V DC at state 1 for all output |
| Local signalling | 2 display blocks | Electrical connection | 1 connector HE10 |
| Mounting Support | 35 mm symmetrical DIN rail | Net Weight | 0.231 lb(US) (0.105 kg) |
| Depth | 3.2 in (81.3 mm) | Height | 3.5 in (90 mm) |
| Width | 1.3 in (33.5 mm) |
Specifications may be subject to change without notice
