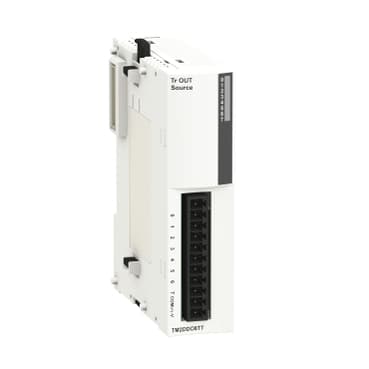

TM2DDO8TT
Product ID:34213
Updated: 2026/7/15
Key Features
- 1Achieve fast 450 µs response times for state transitions.
- 2Ensure secure connections with a removable screw terminal block.
- 3Integrate seamlessly with Modicon M238 and Twido controllers.
- 4Handle inductive loads up to 10 mH and tungsten loads up to 12 W.
- 5Mount easily on a 35 mm DIN rail for robust operation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M238 logic controller | Product or Component Type | Discrete output module |
| Discrete output number | 8 | Discrete output type | Transistor |
| Discrete output voltage | 24 V | Discrete output logic | Source |
| Discrete output current | 0.5 A | Range Compatibility | Advantys OTB<br />Twido |
| Output voltage limits | 20.4...28.8 V | Current per channel | 0.6 A |
| Maximum current per output common | 4 A | Number of common point | 1 |
| Response time | 450 µs from state 0 to state 1<br />450 µs from state 1 to state 0 | [Ures] residual voltage | 0.4 V at state 1 |
| Maximum leakage current | 0.1 mA | Maximum inductive load | 10 mH |
| Maximum tungsten load | 12 W | Short-circuit protection | With automatic reactivaton |
| Overload protection | With automatic reactivaton | Isolation between channels | None |
| Isolation between channels and internal logic | 500 V for 1 minute | Current consumption | 10 mA 5 V DC at state 1 for all output<br />20 mA 24 V DC at state 1 for all output |
| Local signalling | 1 display block | Electrical connection | 1 removable screw terminal block |
| Mounting Support | 35 mm symmetrical DIN rail | Net Weight | 0.187 lb(US) (0.085 kg) |
| Depth | 3.3 in (84.6 mm) | Height | 3.5 in (90 mm) |
| Width | 1.07 in (27.3 mm) |
Specifications may be subject to change without notice
