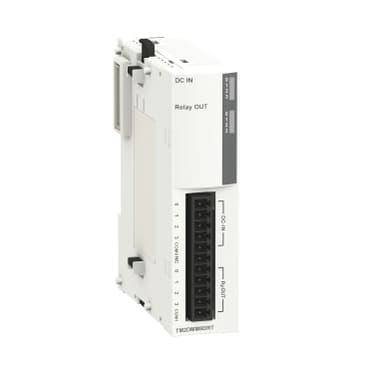

TM2DMM8DRT
Product ID:34216
Updated: 2026/7/15
Key Features
- 1Utilize high-reliability hardware to reduce failures and ensure stability.
- 2Integrate seamlessly with Modicon M238, Advantys OTB, and Twido systems.
- 3Achieve up to 20 million mechanical cycles and 100k electrical cycles for durability.
- 4Benefit from fast response times (≤10ms output, ≤4ms input) and low 20mA current draw.
- 5Secure your investment with a full 2-year warranty for peace of mind.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M238 logic controller | Product or Component Type | Discrete I/O module |
| Discrete input number | 4 | Discrete input voltage | 24 V |
| Discrete input voltage type | DC | Discrete output number | 4 |
| Discrete output type | Relay | Range Compatibility | Twido<br />Advantys OTB |
| input voltage limits | 20.4...28.8 V | Discrete input logic | Sink or source |
| Discrete input current | 7 mA | input impedance | 3.4 kOhm |
| Discrete output function | 1 NO | Current per channel | 2 A |
| Maximum current per output common | 7 A | Number of common point | 1 for output<br />1 for input |
| Contact resistance | 45 mOhm | Response time | <= 10 ms from state 0 to state 1 output<br /><= 5 ms from state 1 to state 0 output<br />4 ms at state 0 input<br />4 ms at state 1 input |
| Minimum switching current | 0.1 mA 0.1 V DC | Isolation between channels | None |
| Isolation between channels and internal logic | 2300 V for 1 minute (output)<br />500 V for 1 minute (input) | Isolation between input channel and output channel | 1500 V for 1 minute |
| Isolation between output channels group | 1500 V for 1 minute | Mechanical durability | 20000000 cycles |
| Electrical durability | 100000 cycles 0.5 A AC-15 240 V AC cos phi = 0.35 inductive<br />100000 cycles 1 A AC-15 240 V AC cos phi = 0.7 inductive<br />100000 cycles 1 A DC-13 24 V DC inductive (L/R = 7 ms)<br />100000 cycles 2 A 240 V AC resistive<br />100000 cycles 2 A 30 V DC resistive | Current consumption | 20 mA 24 V DC at state 1 for all input/output<br />25 mA 5 V DC at state 1 for all input/output |
| Local signalling | 1 display block | Electrical connection | 1 removable screw terminal block |
| Mounting Support | 35 mm symmetrical DIN rail | Net Weight | 0.209 lb(US) (0.095 kg) |
| Depth | 2.8 in (70 mm) | Height | 3.5 in (90 mm) |
| Width | 1.7 in (42.9 mm) |
Specifications may be subject to change without notice
