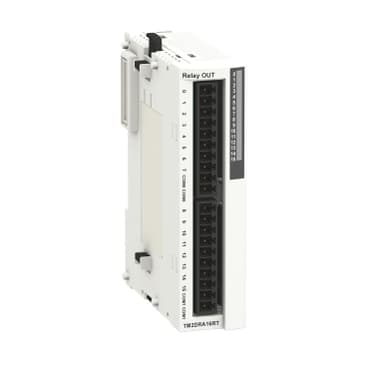

TM2DRA16RT
Product ID:34217
Updated: 2026/7/15
Key Features
- 1Control 16 discrete relay outputs for efficient automation.
- 2Ensure robust 2A per channel performance in tough environments.
- 3Maintain signal stability with 2300V channel-to-logic isolation.
- 4Install the compact module in tight spaces for efficiency.
- 5Choose a sustainable, RoHS-compliant and mercury-free solution.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M238 logic controller | Product or Component Type | I/O expansion module |
| Discrete output number | 16 | Discrete output type | Relay |
| Range Compatibility | Twido<br />Advantys OTB | Discrete output function | 1 NO |
| Current per channel | 2 A | Maximum current per output common | 8 A |
| Number of common point | 2 | Contact resistance | 45 mOhm |
| Response time | <= 10 ms from state 0 to state 1 input<br /><= 5 ms from state 1 to state 0 input | Minimum switching current | 0.1 mA 0.1 V DC |
| Isolation between channels | 1500 V for 1 minute | Isolation between channels and internal logic | 2300 V for 1 minute |
| Isolation between output channels group | 1500 V for 1 minute | Mechanical durability | 20000000 cycles |
| Electrical durability | 100000 cycles 0.5 A AC-15 240 V AC cos phi = 0.35 inductive<br />100000 cycles 1 A AC-15 240 V AC cos phi = 0.7 inductive<br />100000 cycles 1 A DC-13 24 V DC inductive (L/R = 7 ms)<br />100000 cycles 2 A 240 V AC resistive<br />100000 cycles 2 A 30 V DC resistive | Current consumption | 30 mA 5 V DC at state 1 for all output<br />40 mA 24 V DC at state 1 for all output |
| Local signalling | 1 display block | Electrical connection | 1 removable screw terminal block |
| Mounting Support | 35 mm symmetrical DIN rail | Net Weight | 0.320 lb(US) (0.145 kg) |
| Depth | 3.3 in (84.6 mm) | Height | 3.5 in (90 mm) |
| Width | 1.07 in (27.3 mm) |
