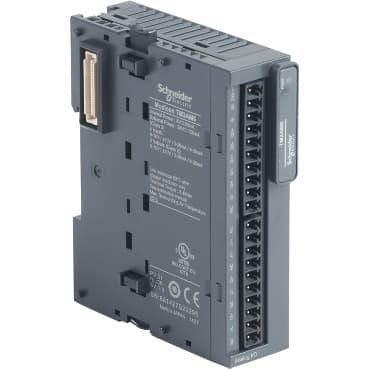

TM3AM6
Product ID:33947
Updated: 2026/7/15
Key Features
- 1Deliver high reliability and durability for critical industrial applications.
- 2Provide advanced monitoring and real-time control capabilities.
- 3Integrate easily with a compact design for various systems.
- 4Enhance safety with built-in protection mechanisms.
- 5Ensure compatibility with a wide range of power system configurations.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon TM3 | Product or Component Type | Input/output analog module |
| Range Compatibility | Modicon M221<br />Modicon M241<br />Modicon M251<br />Modicon M262 | Analogue input number | 4 |
| Analogue input type | current 4...20 mA<br /> current 0...20 mA<br /> voltage 0...10 V<br /> voltage - 10...10 V | Analogue output number | 2 |
| Analogue output type | Current 4...20 mA<br />Current 0...20 mA<br />Voltage 0...10 V<br />Voltage - 10...10 V | Analogue input resolution | 12 bits<br />11 bits + sign |
| Permissible continuous overload | 13 V voltage<br />40 mA current | Input impedance | <= 50 Ohm current<br />>= 1 MOhm voltage |
| Analogue output resolution | 12 bits<br />11 bits + sign | LSB value | 2.44 mV 0...10 V voltage<br />4.88 mV - 10...10 V voltage<br />4.88 µA 0...20 mA current<br />3.91 µA 4...20 mA current |
| Load type | Resistive | Load impedance ohmic | 1 kOhm voltage<br />300 Ohm current |
| Stabilisation time | 1 ms | Conversion time | 1 ms + 1 ms per channel + 1 controller cycle time |
| Sampling duration | 1 ms<br />10 ms | Absolute accuracy error | +/- 1 % of full scale<br />+/- 0.2 % of full scale at 77 °F (25 °C) |
| Temperature Drift | +/- 0.01 %FS/°C | Repeat accuracy | +/-0.5 %FS input<br />+/-0.5 %FS output |
| Non-linearity | +/- 0.2 %FS | Output ripple | 20 mV |
| Cross talk | <= 1 LSB | [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 20.4…28.8 V | Type of cable | Twisted shielded pairs cable <98.4 ft (30 m) input/output |
| Current consumption | 45 mA 5 V DC via bus connector no load<br />55 mA 5 V DC via bus connector full load<br />55 mA 24 V DC via external supply no load<br />100 mA 24 V DC via external supply full load | Local signalling | for PWR 1 LED (green) |
| Electrical connection | 10 x 1.5 mm² removable screw terminal block pitch 3.81 mm for inputs<br />10 x 1.5 mm² removable screw terminal block pitch 3.81 mm for inputs, outputs and supply | Insulation | Between input and supply 1500 V AC<br />Between input and internal logic 500 V AC<br />Between output and supply 1500 V AC<br />Between output and internal logic 500 V AC |
| marking | CE | Surge withstand | 1 kV power supply common mode IEC 61000-4-5<br />0.5 kV power supply differential mode IEC 61000-4-5<br />1 kV I/O common mode IEC 61000-4-5<br />0.5 kV I/O differential mode IEC 61000-4-5 |
| Mounting support | Top hat type TH35-15 rail IEC 60715<br />Top hat type TH35-7.5 rail IEC 60715<br /> plate or panel with fixing kit | Height | 3.5 in (90 mm) |
| Depth | 2.8 in (70 mm) | Width | 0.9 in (23.6 mm) |
| Net Weight | 0.24 lb(US) (0.11 kg) | Standards | IEC 61131-2 |
| Product Certifications | CE<br />UKCA<br />RCM<br />EAC<br />cULus<br />cULus HazLoc | Resistance to electrostatic discharge | 8 kV in air IEC 61000-4-2<br />4 kV on contact IEC 61000-4-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3<br />2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3<br />0.9 V/m (1 V/m) 2 GHz...3 GHz IEC 61000-4-3 | Resistance to magnetic fields | 98.4 A/m (30 A/m) IEC 61000-4-8 |
| Resistance to fast transients | 1 kV IEC 61000-4-4 I/O) | Resistance to conducted disturbances | 10 V 0.15...80 MHz IEC 61000-4-6<br />3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL) |
| Electromagnetic emission | Radiated emissions 40 dBμV/m QP class A 10 m)30…230 MHz IEC 55011<br />Radiated emissions 47 dBμV/m QP class A 10 m)230…1000 MHz IEC 55011 | Immunity to microbreaks | 10 ms |
| Ambient Air Temperature for Operation | 14…131 °F (-10…55 °C) horizontal installation<br />14…95 °F (-10…35 °C) vertical installation | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative humidity | 10…95 %, without condensation in operation)<br />10…95 %, without condensation in storage) | IP Degree of Protection | IP20 |
| Pollution degree | 2 | Operating altitude | 0...6561.68 ft (0...2000 m) |
| Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) | Vibration resistance | 3.5 mm 5…8.4 Hz DIN rail<br />3 gn 8.4…150 Hz DIN rail |
| Shock resistance | 15 gn 11 ms |
Specifications may be subject to change without notice
