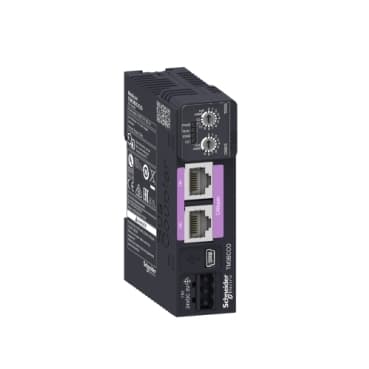

TM3BCCO
Product ID:33953
Updated: 2026/7/15
Key Features
- 1Ensure high reliability for mission-critical industrial applications.
- 2Optimize performance with advanced thermal management systems.
- 3Save valuable panel space using a compact and efficient design.
- 4Simplify installation and maintenance via intuitive user interfaces.
- 5Guarantee compliance with international safety and quality standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon TM3 | Product Compatibility | Logic controller<br />Motion controller |
| Product or Component Type | I/O distributed module | Product Specific Application | Bus coupler module |
| communication port protocol | CANopen | Connector type | RJ45 2 CANopen daisy chain isolated<br />USB device port Mini-B |
| Transmission Rate | 20 kbit/s...1 Mbit/s | Topology | Daisy chain |
| Communication Network Type | CANopen | Communication Service | CANopen slave device profile |
| Web services | Web server, USB | Current consumption | 0.8 A 24 V DC internal supply maximum 7 expansion modules |
| Local signalling | 1 LED green/red PWR (System Status)<br />1 LED green/red RUN (Run)<br />1 LED green/red ERR (Error)<br />1 LED green/red I/O status | Fixing mode | By clipping locks (rail)<br />By screws (mounting plate) |
| Product Certifications | CE<br />cULus<br />EAC<br />RCM<br />UKCA<br />EU-RO MR | Standards | IEC 61131-2<br />UL/CSA 61010-1<br />UL/CSA 61010-2-201 |
| Width | 1.06 in (27 mm) | Height | 3.8 in (96.5 mm) |
| Depth | 2.8 in (70 mm) | Net Weight | 0.22 lb(US) (0.10 kg) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Pollution degree | 2 |
| Ambient Air Temperature for Operation | 14…140 °F (-10…60 °C) | IP degree of protection | IP20 conforming to IEC/EN 61010-2-201 |
| Relative Humidity | 10…95 % non-condensing | Operating altitude | 0...6561.68 ft (0...2000 m) |
| Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) | Vibration resistance | 3M4 35 x 15 mm symmetrical DIN rail |
Specifications may be subject to change without notice
