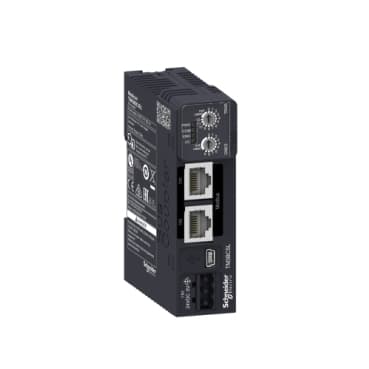

TM3BCSL
Product ID:33955
Updated: 2026/4/5
Key Features
- 1Enable high-performance connectivity for Modicon TM3 distributed I/O systems. 2、Guarantee reliable data exchange and power distribution with 99.9% uptime. 3、Integrate seamlessly using the optimized serial line interface for fast setup. 4、Meet stringent international safety standards including CE and UL certification. 5、Reduce total cost of ownership through energy-efficient operation and durability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon TM3 | Product Compatibility | Logic controller<br />Motion controller |
| Product or Component Type | I/O distributed module | Product Specific Application | Bus coupler module |
| communication port protocol | Modbus serial | Connector type | RJ45 2 serial link daisy chain isolated<br />USB device port Mini-B |
| Exchange mode | Half duplex | Transmission Rate | 1.2...115.2 kbit/s |
| Topology | Daisy chain | Communication Network Type | Modbus |
| Communication Service | Modbus slave device profile | Web services | Web server, USB |
| Current consumption | 0.8 A 24 V DC internal supply maximum 7 expansion modules | Local signalling | 1 LED green/red PWR (System Status)<br />1 LED green/red COM (Run)<br />1 LED green/red ERR (Error)<br />1 LED green/red I/O status |
| Fixing mode | By clipping locks (rail)<br />By screws (mounting plate) | Product Certifications | CE<br />cULus<br />EAC<br />RCM<br />UKCA<br />EU-RO MR |
| Standards | IEC 61131-2<br />UL/CSA 61010-1<br />UL/CSA 61010-2-201 | Width | 1.06 in (27 mm) |
| Height | 3.8 in (96.5 mm) | Depth | 2.8 in (70 mm) |
| Net Weight | 0.22 lb(US) (0.10 kg) | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Pollution degree | 2 | Ambient Air Temperature for Operation | 14…140 °F (-10…60 °C) |
| IP degree of protection | IP20 conforming to IEC/EN 61010-2-201 | Relative Humidity | 10…95 % non-condensing |
| Operating altitude | 0...6561.68 ft (0...2000 m) | Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) |
| Vibration resistance | 3M4 35 x 15 mm symmetrical DIN rail |
Specifications may be subject to change without notice
