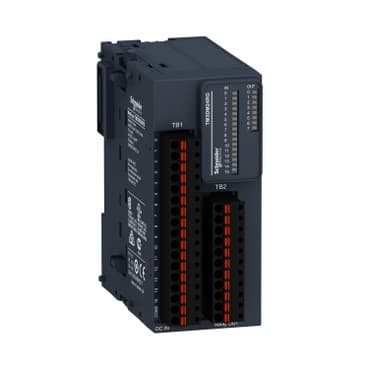

TM3DM24RG
Product ID:33964
Updated: 2026/4/5
Key Features
- 1Control 16 discrete inputs and 8 relay outputs for versatile automation. 2、Integrate seamlessly with Modicon M221 and M241 programmable controllers. 3、Ensure reliable operation with robust construction for harsh industrial environments. 4、Meet global safety and compliance standards including CE and UL certifications. 5、Reduce installation time and maintenance costs with a compact, durable design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon TM3 | Product or Component Type | Discrete I/O module |
| Range Compatibility | Modicon M241<br />Modicon M251<br />Modicon M221<br />Modicon M262 | Discrete input number | 16 input IEC 61131-2 Type 1 |
| Discrete input logic | Sink or source (positive/negative) | Discrete input voltage | 24 V |
| Discrete input current | 7 mA input | Discrete output type | Relay normally open |
| Discrete output number | 8 | Discrete output logic | Positive or negative |
| Discrete output voltage | 24 V DC relay output<br />240 V AC relay output | Discrete output current | 2000 mA relay output |
| Discrete I/O number | 24 | Current consumption | 5 mA 5 V DC via bus connector at state off)<br />0 mA 24 V DC via bus connector at state on)<br />0 mA 24 V DC via bus connector at state off)<br />65 mA 5 V DC via bus connector at state on) |
| Discrete input voltage type | DC | Voltage state 1 guaranteed | 15...28.8 V input |
| Current state 1 guaranteed | >= 2.5 mA input) | Voltage state 0 guaranteed | 0...5 V input |
| Current state 0 guaranteed | <= 1 mA input) | Input impedance | 3.4 kOhm |
| Response time | 4 ms (turn-on)<br />4 ms (turn-off) | Maximum current per output common | 7 A |
| Mechanical durability | 20000000 cycles | Minimum load | 10 mA 5 V DC relay output |
| Local signalling | for I/O state 1 LED per channel (green) | Electrical connection | 17 x 1.5 mm² removable spring terminal block pitch 3.81 mm for inputs<br />11 x 1.5 mm² removable spring terminal block pitch 3.81 mm for outputs |
| Maximum cable distance between devices | Unshielded cable <98.4 ft (30 m) regular input | Insulation | Between input and internal logic 500 V AC<br />Non-insulated between inputs<br />Between input groups and output groups 1500 V AC<br />Between open contact 750 V AC<br />Between output and internal logic 500 V AC<br />Non-insulated between outputs |
| Marking | CE | Mounting support | Top hat type TH35-15 rail IEC 60715<br />Top hat type TH35-7.5 rail IEC 60715<br /> plate or panel with fixing kit |
| Height | 3.5 in (90 mm) | Depth | 3.3 in (84.6 mm) |
| Width | 1.7 in (42.9 mm) | Standards | IEC 61131-2 |
| Product Certifications | cULus<br />CE<br />UKCA<br />RCM<br />EAC<br />cULus HazLoc | Resistance to electrostatic discharge | 8 kV in air IEC 61000-4-2<br />4 kV on contact IEC 61000-4-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3<br />2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3<br />0.9 V/m (1 V/m) 2 GHz...3 GHz IEC 61000-4-3 | Resistance to magnetic fields | 98.4 A/m (30 A/m) 50/60 Hz IEC 61000-4-8 |
| Resistance to fast transients | 1 kV I/OIEC 61000-4-4<br />2 kV relay outputIEC 61000-4-4 | Surge withstand | 2 kV output common mode IEC 61000-4-5<br />1 kV input common mode IEC 61000-4-5 |
| Resistance to conducted disturbances | 10 V 0.15...80 MHz IEC 61000-4-6<br />3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL) | Electromagnetic emission | Radiated emissions 40 dBμV/m QP class A 10 m)30…230 MHz IEC 55011<br />Radiated emissions 47 dBμV/m QP class A 10 m)230…1000 MHz IEC 55011 |
| Ambient Air Temperature for Operation | 14…95 °F (-10…35 °C) vertical installation<br />14…131 °F (-10…55 °C) horizontal installation | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative humidity | 10…95 %, without condensation in operation)<br />10…95 %, without condensation in storage) | IP degree of protection | IP20 with protective cover in place |
| Pollution degree | 2 | Operating altitude | 0...6561.68 ft (0...2000 m) |
| Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) | Vibration resistance | 3.5 mm 5…8.4 Hz DIN rail<br />3 gn 8.4…150 Hz DIN rail<br />3.5 mm 5…8.4 Hz panel<br />3 gn 8.4…150 Hz panel |
| Shock resistance | 15 gn 11 ms |
Specifications may be subject to change without notice
