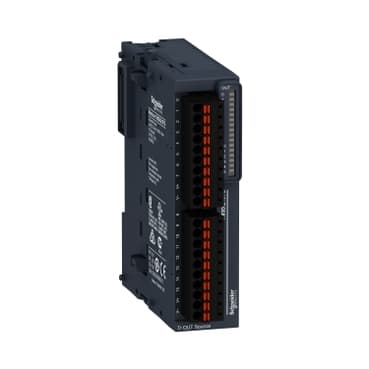

TM3DQ16TG
Product ID:33970
Updated: 2026/4/5
Key Features
- 1Control 16 devices with a high-performance 16A output. 2、Integrate easily using a compact and space-saving design. 3、Operate reliably with low noise and high energy efficiency. 4、Utilize a wide input voltage range for versatile applications. 5、Ensure safety with built-in electrical protection features.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon TM3 | Product or Component Type | Discrete output module |
| Range Compatibility | Modicon M241<br />Modicon M251<br />Modicon M221<br />Modicon M262 | Discrete output type | Transistor |
| Discrete output number | 16 | Discrete output logic | Positive logic (source) |
| Discrete output voltage | 24 V DC transistor output | Discrete output current | 500 mA transistor output |
| Discrete I/O number | 16 | Current consumption | 5 mA 5 V DC via bus connector at state off)<br />0 mA 24 V DC via bus connector at state off)<br />15 mA 5 V DC via bus connector at state on)<br />20 mA 24 V DC via bus connector at state on) |
| Response time | 450 µs (turn-on)<br />450 µs (turn-off) | Maximum leakage current | 0.1 mA transistor output |
| Maximum voltage drop | <0.4 V | Maximum tungsten load | <3 W transistor output |
| Local signalling | for output status 1 LED per channel (green) | Electrical connection | 10 x 1.5 mm² removable spring terminal block pitch 3.81 mm for outputs |
| Maximum cable distance between devices | Unshielded cable <98.4 ft (30 m) transistor output | Insulation | Between output and internal logic 500 V AC<br />Non-insulated between outputs |
| marking | CE | Mounting support | Top hat type TH35-15 rail IEC 60715<br />Top hat type TH35-7.5 rail IEC 60715<br /> plate or panel with fixing kit |
| Height | 3.5 in (90 mm) | Depth | 3.3 in (84.6 mm) |
| Width | 1.08 in (27.4 mm) | Net Weight | 0.24 lb(US) (0.11 kg) |
| Standards | IEC 61131-2 | Product Certifications | cULus<br />CE<br />UKCA<br />RCM<br />EAC<br />cULus HazLoc |
| Resistance to electrostatic discharge | 8 kV in air IEC 61000-4-2<br />4 kV on contact IEC 61000-4-2 | Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3<br />2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3<br />0.9 V/m (1 V/m) 2 GHz...3 GHz IEC 61000-4-3 |
| Resistance to magnetic fields | 98.4 A/m (30 A/m) 50/60 Hz IEC 61000-4-8 | Resistance to fast transients | 1 kV I/OIEC 61000-4-4 |
| Surge withstand | 1 kV I/O common mode IEC 61000-4-5 DC | Resistance to conducted disturbances | 10 V 0.15...80 MHz IEC 61000-4-6<br />3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL) |
| Electromagnetic emission | Radiated emissions 40 dBμV/m QP class A 10 m)30…230 MHz IEC 55011<br />Radiated emissions 47 dBμV/m QP class A 10 m)230…1000 MHz IEC 55011 | Ambient Air Temperature for Operation | 14…95 °F (-10…35 °C) vertical installation<br />14…131 °F (-10…55 °C) horizontal installation |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Relative humidity | 10…95 %, without condensation in operation)<br />10…95 %, without condensation in storage) |
| IP degree of protection | IP20 with protective cover in place | Pollution degree | 2 |
| Operating altitude | 0...6561.68 ft (0...2000 m) | Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) |
| Vibration resistance | 3.5 mm 5…8.4 Hz DIN rail<br />3 gn 8.4…150 Hz DIN rail<br />3.5 mm 5…8.4 Hz panel<br />3 gn 8.4…150 Hz panel | Shock resistance | 15 gn 11 ms |
Specifications may be subject to change without notice
