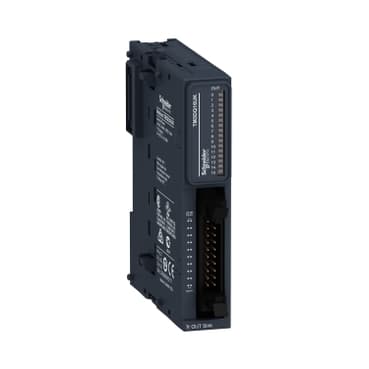

TM3DQ16UK
Product ID:33974
Updated: 2026/4/5
Key Features
- 1Deliver high-capacity 16 kW output for demanding applications. 2、Integrate easily with a compact design for industrial settings. 3、Ensure optimal performance with advanced thermal management. 4、Meet international safety standards including IEC, UL, and CE. 5、Operate reliably with minimal maintenance requirements.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon TM3 | Product or Component Type | Discrete output module |
| Range Compatibility | Modicon M241<br />Modicon M251<br />Modicon M221<br />Modicon M262 | Discrete output type | Transistor |
| Discrete output number | 16 | Discrete output logic | Negative logic (sink) |
| Discrete output voltage | 24 V DC transistor output | Discrete output current | 100 mA transistor output |
| Discrete I/O number | 16 | Current consumption | 5 mA 5 V DC via bus connector at state off)<br />0 mA 24 V DC via bus connector at state off)<br />15 mA 5 V DC via bus connector at state on)<br />20 mA 24 V DC via bus connector at state on) |
| Response time | 450 µs (turn-on)<br />450 µs (turn-off) | Maximum leakage current | 0.1 mA transistor output |
| Maximum voltage drop | <0.4 V | Local signalling | for output status 1 LED per channel (green) |
| Electrical connection | HE-10 connector for outputs | Maximum cable distance between devices | Unshielded cable <16.4 ft (5 m) transistor output |
| Insulation | Between output and internal logic 500 V AC<br />Non-insulated between outputs | marking | CE |
| Mounting support | Top hat type TH35-15 rail IEC 60715<br />Top hat type TH35-7.5 rail IEC 60715<br /> plate or panel with fixing kit | Height | 3.5 in (90 mm) |
| Depth | 3.2 in (81.3 mm) | Width | 0.8 in (21.4 mm) |
| Net Weight | 0.245 lb(US) (0.111 kg) | Standards | IEC 61131-2 |
| Product Certifications | cULus<br />CE<br />UKCA<br />RCM<br />EAC<br />cULus HazLoc | Resistance to electrostatic discharge | 8 kV in air IEC 61000-4-2<br />4 kV on contact IEC 61000-4-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3<br />2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3<br />0.9 V/m (1 V/m) 2 GHz...3 GHz IEC 61000-4-3 | Resistance to magnetic fields | 98.4 A/m (30 A/m) 50/60 Hz IEC 61000-4-8 |
| Resistance to fast transients | 1 kV I/OIEC 61000-4-4 | Surge withstand | 1 kV I/O common mode IEC 61000-4-5 DC |
| Resistance to conducted disturbances | 10 V 0.15...80 MHz IEC 61000-4-6<br />3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL) | Electromagnetic emission | Radiated emissions 40 dBμV/m QP class A 10 m)30…230 MHz IEC 55011<br />Radiated emissions 47 dBμV/m QP class A 10 m)230…1000 MHz IEC 55011 |
| Ambient Air Temperature for Operation | 14…95 °F (-10…35 °C) vertical installation<br />14…131 °F (-10…55 °C) horizontal installation | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative humidity | 10…95 %, without condensation in operation)<br />10…95 %, without condensation in storage) | IP degree of protection | IP20 with protective cover in place |
| Pollution degree | 2 | Operating altitude | 0...6561.68 ft (0...2000 m) |
| Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) | Vibration resistance | 3.5 mm 5…8.4 Hz DIN rail<br />3 gn 8.4…150 Hz DIN rail<br />3.5 mm 5…8.4 Hz panel<br />3 gn 8.4…150 Hz panel |
| Shock resistance | 15 gn 11 ms |
Specifications may be subject to change without notice
