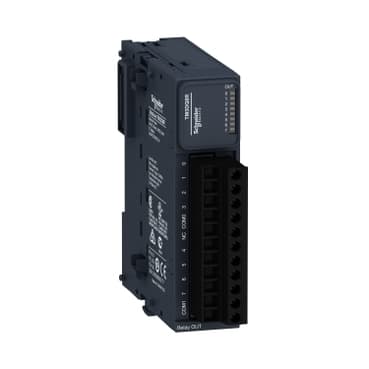

TM3DQ8R
Product ID:33977
Updated: 2026/4/5
Key Features
- 1Withstand 20 million cycles for exceptional operational longevity. 2、Support both positive and negative logic for versatile application. 3、Ensure compatibility with Modicon M221, M241, M251, and M262 controllers. 4、Provide enhanced safety with 1500V AC insulation between output groups. 5、Consume only 40mA at 24V DC for efficient power usage.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon TM3 | Product or Component Type | Discrete output module |
| Range Compatibility | Modicon M241<br />Modicon M251<br />Modicon M221<br />Modicon M262 | Discrete output type | Relay normally open |
| Discrete output number | 8 | Discrete output logic | Positive or negative |
| Discrete output voltage | 24 V DC relay output<br />240 V AC | Discrete output current | 2000 mA relay output |
| Discrete I/O number | 8 | Current consumption | 5 mA 5 V DC via bus connector at state off)<br />0 mA 24 V DC via bus connector at state off)<br />40 mA 24 V DC via bus connector at state on)<br />30 mA 5 V DC via bus connector at state on) |
| Response time | 10 ms (turn-on)<br />5 ms (turn-off) | Mechanical durability | 20000000 cycles |
| Minimum load | 10 mA 5 V DC relay output | Local signalling | for output status 1 LED per channel (green) |
| Electrical connection | 11 x 2.5 mm² removable screw terminal block pitch 5.08 mm for outputs | Maximum cable distance between devices | Unshielded cable <98.4 ft (30 m) relay output |
| Insulation | Between output and internal logic 2300 V AC<br />Between outputs 750 V AC<br />Between output groups 1500 V AC | marking | CE |
| Mounting support | Top hat type TH35-15 rail IEC 60715<br />Top hat type TH35-7.5 rail IEC 60715<br /> plate or panel with fixing kit | Height | 3.5 in (90 mm) |
| Depth | 3.3 in (84.6 mm) | Width | 1.08 in (27.4 mm) |
| Net Weight | 0.24 lb(US) (0.11 kg) | Standards | IEC 61131-2 |
| Product Certifications | CE<br />cULus<br />UKCA<br />RCM<br />EAC<br />cULus HazLoc | Resistance to electrostatic discharge | 8 kV in air IEC 61000-4-2<br />4 kV on contact IEC 61000-4-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3<br />2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3<br />0.9 V/m (1 V/m) 2 GHz...3 GHz IEC 61000-4-3 | Resistance to magnetic fields | 98.4 A/m (30 A/m) 50/60 Hz IEC 61000-4-8 |
| Resistance to fast transients | 2 kV relay outputIEC 61000-4-4 | Surge withstand | 1 kV I/O common mode IEC 61000-4-5 DC |
| Resistance to conducted disturbances | 10 V 0.15...80 MHz IEC 61000-4-6<br />3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL) | Electromagnetic emission | Radiated emissions 40 dBμV/m QP class A 10 m)30…230 MHz IEC 55011<br />Radiated emissions 47 dBμV/m QP class A 10 m)230…1000 MHz IEC 55011 |
| Ambient Air Temperature for Operation | 14…95 °F (-10…35 °C) vertical installation<br />14…131 °F (-10…55 °C) horizontal installation | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative humidity | 10…95 %, without condensation in operation)<br />10…95 %, without condensation in storage) | IP degree of protection | IP20 with protective cover in place |
| Pollution degree | 2 | Operating altitude | 0...6561.68 ft (0...2000 m) |
| Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) | Vibration resistance | 3.5 mm 5…8.4 Hz DIN rail<br />3 gn 8.4…150 Hz DIN rail<br />3.5 mm 5…8.4 Hz panel<br />3 gn 8.4…150 Hz panel |
| Shock resistance | 15 gn 11 ms |
Specifications may be subject to change without notice
