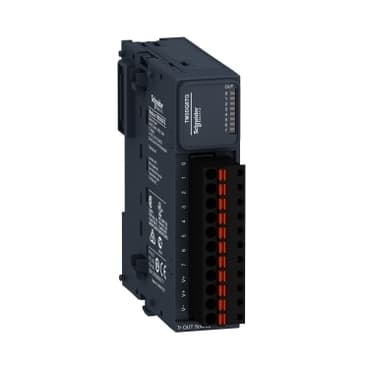

TM3DQ8TG
Product ID:33980
Updated: 2026/4/5
Key Features
- 1Control 8 devices with reliable transistor PNP outputs. 2、Ensure safe operation in various environments with an IP20 rating. 3、Simplify wiring using easy, durable spring terminal blocks. 4、Integrate seamlessly into standard 24 Vdc industrial control systems. 5、Meet global safety standards with CE and CULus certifications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon TM3 | Product or Component Type | Discrete output module |
| Range Compatibility | Modicon M241<br />Modicon M251<br />Modicon M221<br />Modicon M262 | Discrete output type | Transistor |
| Discrete output number | 8 | Discrete output logic | Positive logic (source) |
| Discrete output voltage | 24 V DC transistor output | Discrete output current | 500 mA transistor output |
| Discrete I/O number | 8 | Current consumption | 5 mA 5 V DC via bus connector at state off)<br />0 mA 24 V DC via bus connector at state off)<br />20 mA 24 V DC via bus connector at state on)<br />10 mA 5 V DC via bus connector at state on) |
| Response time | 450 µs (turn-on)<br />450 µs (turn-off) | Maximum leakage current | 0.1 mA transistor output |
| Maximum voltage drop | <0.4 V | Maximum tungsten load | <3 W transistor output |
| Local signalling | for output status 1 LED per channel (green) | Electrical connection | 11 x 2.5 mm² removable spring terminal block pitch 5.08 mm for outputs |
| Maximum cable distance between devices | Unshielded cable <98.4 ft (30 m) transistor output | Insulation | Between output and internal logic 500 V AC<br />Non-insulated between outputs |
| Marking | CE | Mounting support | Top hat type TH35-15 rail IEC 60715<br />Top hat type TH35-7.5 rail IEC 60715<br /> plate or panel with fixing kit |
| Height | 3.5 in (90 mm) | Depth | 3.3 in (84.6 mm) |
| Width | 1.08 in (27.4 mm) | Net Weight | 1.68 lb(US) (0.76 kg) |
| Standards | IEC 61131-2 | Product Certifications | CE<br />cULus<br />UKCA<br />RCM<br />EAC<br />cULus HazLoc |
| Resistance to electrostatic discharge | 8 kV in air IEC 61000-4-2<br />4 kV on contact IEC 61000-4-2 | Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3<br />2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3<br />0.9 V/m (1 V/m) 2 GHz...3 GHz IEC 61000-4-3 |
| Resistance to magnetic fields | 98.4 A/m (30 A/m) 50/60 Hz IEC 61000-4-8 | Resistance to fast transients | 1 kV I/OIEC 61000-4-4 |
| Surge withstand | 1 kV I/O common mode IEC 61000-4-5 DC | Resistance to conducted disturbances | 10 V 0.15...80 MHz IEC 61000-4-6<br />3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL) |
| Electromagnetic emission | Radiated emissions 40 dBμV/m QP class A 10 m)30…230 MHz IEC 55011<br />Radiated emissions 47 dBμV/m QP class A 10 m)230…1000 MHz IEC 55011 | Ambient Air Temperature for Operation | 14…95 °F (-10…35 °C) vertical installation<br />14…131 °F (-10…55 °C) horizontal installation |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Relative humidity | 10…95 %, without condensation in operation)<br />10…95 %, without condensation in storage) |
| IP degree of protection | IP20 with protective cover in place | Pollution degree | 2 |
| Operating altitude | 0...6561.68 ft (0...2000 m) | Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) |
| Vibration resistance | 3.5 mm 5…8.4 Hz DIN rail<br />3 gn 8.4…150 Hz DIN rail<br />3.5 mm 5…8.4 Hz panel<br />3 gn 8.4…150 Hz panel | Shock resistance | 15 gn 11 ms |
Specifications may be subject to change without notice
