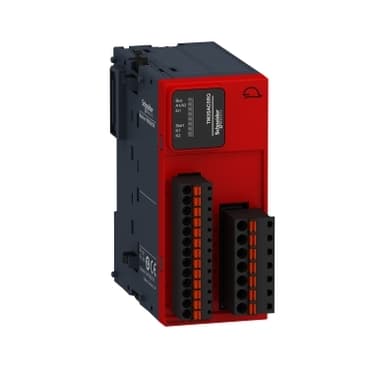

TM3SAC5RG
Product ID:34104
Updated: 2026/4/4
Key Features
- 1Meet PL d/Category 3 and SIL CL2 safety standards. 2、Utilize removable terminals for easier control wire tightening. 3、Employ spring terminals for fast, reliable safety circuit wiring. 4、Operate on 24V DC with up to 30m cable distance. 5、Monitor channels via integrated diagnostics and display block.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon TM3 Safety | Product or Component Type | Safety module |
| Device short name | TM3SAC | Safety module application | For emergency stop and switch monitoring |
| Function of module | Emergency stop monitoring 1-channel wiring<br />Emergency stop monitoring 2-channel wiring<br />Monitoring of a movable guard with 2 switches and automatic start | Safety level | Can reach PL d/category 3 ISO 13849-1 2008<br />Can reach PL d/category 3 ISO 13849-2 2012<br />Can reach SILCL 2 IEC 62061 2005<br />Can reach SIL 2 IEC 61508 2010 |
| Safety reliability data | DC = 95 % ISO 13849-1<br />SFF = 95 % IEC 61508-1<br />HFT = 1 IEC 61508-1<br />Type = A IEC 61508-1<br />PFHd = 5E-9 1/h IEC 61508-1<br />PFHd = 30E-9 1/h IEC 61508-1<br />MTTFd = 500 years ISO 13849-1<br />MTTFd = 85 years ISO 13849-1 | Synchronisation time between inputs | Unlimited |
| Connections - terminals | Captive spring terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² flexible without cable end 13-14, 23-24, 33-34<br />Captive spring terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² solid without cable end 13-14, 23-24, 33-34<br />Captive spring terminals, removable terminal block 1 x 0.25...1 x 2.5 mm² flexible with cable end, with bezel 13-14, 23-24, 33-34<br />Captive spring terminals, removable terminal block 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel 13-14, 23-24, 33-34<br />Captive spring terminals, removable terminal block 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel 13-14, 23-24, 33-34<br />Captive spring terminals, removable terminal block 1 x 0.14...1 x 1.5 mm² flexible without cable end other terminals<br />Captive spring terminals, removable terminal block 1 x 0.14...1 x 1.5 mm² solid without cable end other terminals<br />Captive spring terminals, removable terminal block 1 x 0.25...1 x 0.5 mm² flexible with cable end, with bezel other terminals<br />Captive spring terminals, removable terminal block 1 x 0.25...1 x 1.5 mm² flexible with cable end, without bezel other terminals | Output type | Relay instantaneous opening, 3 NO, potential free |
| Number of safety circuits | 3 NO relay instantaneous opening | Maximum switching voltage | 230 V AC-15 50 Hz relay instantaneous opening)<br />24 V DC-13 relay instantaneous opening) |
| [Us] rated supply voltage | 24 V - 15...20 % DC | Power consumption in W | 0.2 W 5 V DC<br />3.6 W 24 V DC |
| Input protection type | Internal, electronic | [Uc] control circuit voltage | 24 V DC |
| Maximum cable distance between devices | 98.4 ft (30 m) | Breaking capacity | 4 A 24 V 50 ms DC-13 relay output |
| Output thermal current | 6 A per relay relay output | [Ith] conventional free air thermal current | 18 A |
| Associated fuse rating | 4 A gG or gL relay output IEC 60947-5-1<br />6 A fast blow relay output IEC 60947-5-1 | Minimum output current | 10 mA relay output |
| Output voltage | 10 V relay output | Maximum response time on input open | 40 ms |
| [Ui] rated insulation voltage | 300 V 2)IEC 60647-5-1 | [Uimp] rated impulse withstand voltage | 4 kV III IEC 60647-5-1 |
| Current consumption | 100 mA 24 V DC external supply | Local signalling | for user 6 LEDs (green/red) |
| Electrical Connection | Spring terminal | Standards | IEC 60947-1<br />IEC 60204-1<br />ISO 13850<br />EN 1088/ISO 14119<br />IEC 60947-5-1 |
| Product Certifications | UL 61010-2-201<br />CSA 61010-2-201 (pending)<br />TÜV<br />EAC<br />CSA Haz Loc Class 1 Division 2 (pending)<br />ANSI Haz Loc Class 1 Division 2 (pending)<br />RCM | marking | CSA<br />EAC<br />CE<br />RCM<br />UL<br />TÜV<br />EFUP 10 |
| Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2<br />Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2<br />Susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz to 1 GHz) conforming to IEC 61000-4-3<br />Susceptibility to electromagnetic fields - test level: 3 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3<br />Susceptibility to electromagnetic fields - test level: 1 V/m (2 GHz...3 GHz) conforming to IEC 61000-4-3<br />Magnetic field at power frequency - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8<br />Electrical fast transient/burst immunity test - test level: 3 kV (power lines (DC)) conforming to IEC 61000-4-4<br />Electrical fast transient/burst immunity test - test level: 2 kV (I/O) conforming to IEC 61000-4-4<br />1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to IEC 61000-4-5<br />Conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6<br />Radiated emission - test level: 40 dBµV/m class A (24 V) conforming to IEC 55011<br />Radiated emission - test level: 47 dBµV/m class A (24 V) conforming to IEC 55011 | Mounting support | Top hat type TH35-7.5 rail IEC 60715<br />Top hat type TH35-15 rail IEC 60715<br /> wall mount using attached fasteners |
| Height | 3.7 in (94 mm) | Depth | 2.9 in (73 mm) |
| Width | 1.7 in (43.7 mm) | Net Weight | 0.42 lb(US) (0.19 kg) |
| Resistance to electrostatic discharge | 8 kV in air IEC 61000-4-2<br />6 kV on contact IEC 61000-4-2 | Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3<br />2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3<br />0.9 V/m (1 V/m) 2 GHz...3 GHz IEC 61000-4-3 |
| Resistance to magnetic fields | 98.4 A/m (30 A/m) 50/60 Hz IEC 61000-4-8 | Resistance to fast transients | 3 kV power lines (DC) DC)IEC 61000-4-4<br />2 kV I/O linesIEC 61000-4-4 |
| Surge withstand | 1 kV power lines (DC) differential mode IEC 61000-4-5 DC<br />1 kV power lines (DC) common mode IEC 61000-4-5 DC | Resistance to conducted disturbances | 10 V 0.15...80 MHz IEC 61000-4-6 |
| Electromagnetic emission | Radiated emissions 50 dBµV/m class A 24 V DC)30…230 Hz IEC 61131-3<br />Radiated emissions 57 dBµV/m class A 24 V DC)230…1000 Hz IEC 61131-3 | Ambient Air Temperature for Operation | 14…131 °F (-10…55 °C) horizontal installation |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Relative humidity | 10…95 %, without condensation in operation)<br />10…95 %, without condensation in storage) |
| IP degree of protection | IP20 terminals)IEC 60529 | Pollution degree | 2 |
| Operating altitude | 0...6561.68 ft (0...2000 m) | Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) |
| Vibration resistance | +/- 3.5 mm 5…150 Hz)IEC 60068-2-6 | Shock resistance | 15 gn 11 ms IEC 60068-2-27 |
| Mechanical robustness | Bumps 6 ms 300 shocks 25 gn) IEC 60068-2-27 |
Specifications may be subject to change without notice
