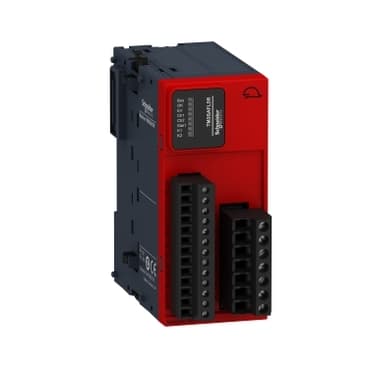

TM3SAFL5R
Product ID:34107
Updated: 2026/4/4
Key Features
- 1Meet PLd/Category 3 and SIL CL2 safety standards for reliable risk control. 2、Monitor emergency stops, switches, and safety light curtains with one module. 3、Ensure secure connections using robust screw terminal blocks. 4、Install in tight spaces with its compact 1.72" W x 3.7" H footprint. 5、Operate reliably from -10 to 55°F in horizontal mounting orientations.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon TM3 Safety | Product or Component Type | Safety module |
| Device short name | TM3SAFL | Safety module application | For emergency stop, switch and safety light curtain monitoring |
| Function of module | Emergency stop monitoring 2-channel wiring<br />Monitoring of a movable guard with 2 switches and automatic start<br />Monitoring of a movable guard<br />Multiple emergency stop monitoring 2-channel wiring<br />Proximity sensor monitoring PNP/PNP<br />Monitoring of electro-sensitive protection equipment (ESPE) PNP/PNP | Safety level | Can reach PL d/category 3 ISO 13849-1 2008<br />Can reach PL d/category 3 ISO 13849-2 2012<br />Can reach SILCL 2 IEC 62061 2005<br />Can reach SIL 2 IEC 61508 2010 |
| Safety reliability data | DC = 95 % ISO 13849-1<br />PFHd = 5E-9 1/h IEC 61508-1 1 operation/hour DC-13 24 V DC, <4 A<br />PFHd = 30E-9 1/h IEC 61508-1 60 operations/hour DC-13 24 V DC, <1 A<br />MTTFd = 500 years ISO 13849-1 1 operation/hour DC-13 24 V DC, <4 A<br />MTTFd = 85 years ISO 13849-1 60 operations/hour DC-13 24 V DC, <1 A<br />SFF = 95 % IEC 61508-1<br />HFT = 1 IEC 61508-1<br />Type = A IEC 61508-1 | Synchronisation time between inputs | Unlimited |
| Connections - terminals | Captive screw clamp terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² flexible without cable end 13-14, 23-24, 33-34<br />Captive screw clamp terminals, removable terminal block 1 x 0.2...1 x 2.5 mm² solid without cable end 13-14, 23-24, 33-34<br />Captive screw clamp terminals, removable terminal block 1 x 0.25...1 x 2.5 mm² flexible with cable end, with bezel 13-14, 23-24, 33-34<br />Captive screw clamp terminals, removable terminal block 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel 13-14, 23-24, 33-34<br />Captive screw clamp terminals, removable terminal block 2 x 0.2...2 x 1.5 mm² flexible without cable end 13-14, 23-24, 33-34<br />Captive screw clamp terminals, removable terminal block 2 x 0.2...2 x 1.5 mm² solid without cable end 13-14, 23-24, 33-34<br />Captive screw clamp terminals, removable terminal block 2 x 0.25...2 x 1 mm² flexible with cable end, without bezel 13-14, 23-24, 33-34<br />Captive screw clamp terminals, removable terminal block 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel 13-14, 23-24, 33-34<br />Captive screw clamp terminals, removable terminal block 1 x 0.14...1 x 1.5 mm² flexible without cable end other terminals<br />Captive screw clamp terminals, removable terminal block 1 x 0.14...1 x 1.5 mm² solid without cable end other terminals<br />Captive screw clamp terminals, removable terminal block 1 x 0.25...1 x 0.5 mm² flexible with cable end, with bezel other terminals<br />Captive screw clamp terminals, removable terminal block 1 x 0.25...1 x 1.5 mm² flexible with cable end, without bezel other terminals<br />Captive screw clamp terminals, removable terminal block 2 x 0.14...2 x 0.5 mm² flexible without cable end other terminals<br />Captive screw clamp terminals, removable terminal block 2 x 0.14...2 x 0.75 mm² solid without cable end other terminals<br />Captive screw clamp terminals, removable terminal block 2 x 0.25...2 x 0.34 mm² flexible with cable end, without bezel other terminals<br />Captive screw clamp terminals, removable terminal block 2 x 0.5 mm² flexible with cable end, with double bezel other terminals | Output type | Relay instantaneous opening, 3 NO, potential free |
| Number of safety circuits | 3 NO relay instantaneous opening | Maximum switching voltage | 230 V AC-15 50 Hz relay instantaneous opening)<br />24 V DC-13 relay instantaneous opening) |
| [Us] rated supply voltage | 24 V - 15...20 % DC | Power consumption in W | 0.2 W 5 V DC<br />3.6 W 24 V DC |
| Input protection type | Internal, electronic | [Uc] control circuit voltage | 24 V DC |
| Maximum cable distance between devices | 98.4 ft (30 m) | Breaking capacity | 4 A 24 V 50 ms DC-13 relay output |
| Output thermal current | 6 A per relay relay output | [Ith] conventional free air thermal current | 18 A |
| Associated fuse rating | 4 A gG or gL relay output IEC 60947-5-1<br />6 A fast blow relay output IEC 60947-5-1 | Minimum output current | 10 mA relay output |
| Output voltage | 10 V relay output | Maximum response time on input open | 40 ms |
| [Ui] rated insulation voltage | 300 V 2)IEC 60647-5-1 | [Uimp] rated impulse withstand voltage | 4 kV III IEC 60647-5-1 |
| Current consumption | 100 mA 24 V DC external supply | Local signalling | for user 8 LEDs (green/red) |
| Electrical Connection | Screw terminal | Product compatibility | Safety light curtains EN/IEC 61496-1 (type 4) |
| Standards | IEC 60947-1<br />EN 1088/ISO 14119<br />ISO 13850<br />IEC 60947-5-1<br />IEC 60204-1 | Product Certifications | TÜV<br />RCM<br />ANSI Haz Loc Class 1 Division 2 (pending)<br />CSA Haz Loc Class 1 Division 2 (pending)<br />EAC<br />CSA 61010-2-201 (pending)<br />UL 61010-2-201 |
| Marking | CE<br />EFUP 10<br />UL<br />CSA<br />EAC<br />RCM<br />TÜV | Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2<br />Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2<br />Susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz to 1 GHz) conforming to IEC 61000-4-3<br />Susceptibility to electromagnetic fields - test level: 3 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3<br />Susceptibility to electromagnetic fields - test level: 1 V/m (2 GHz...3 GHz) conforming to IEC 61000-4-3<br />Magnetic field at power frequency - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8<br />Electrical fast transient/burst immunity test - test level: 3 kV (power lines (DC)) conforming to IEC 61000-4-4<br />Electrical fast transient/burst immunity test - test level: 2 kV (I/O) conforming to IEC 61000-4-4<br />1.2/50 µs shock waves immunity test - test level: 1 kV (power lines (DC)) conforming to IEC 61000-4-5<br />Conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6<br />Radiated emission - test level: 40 dBµV/m class A (24 V) conforming to IEC 55011<br />Radiated emission - test level: 47 dBµV/m class A (24 V) conforming to IEC 55011 |
| Mounting support | Top hat type TH35-7.5 rail IEC 60715<br />Top hat type TH35-15 rail IEC 60715<br /> wall mount using attached fasteners | Height | 3.7 in (94 mm) |
| Depth | 2.9 in (73 mm) | Width | 1.7 in (43.7 mm) |
| Net Weight | 0.42 lb(US) (0.19 kg) | Resistance to electrostatic discharge | 8 kV in air IEC 61000-4-2<br />6 kV on contact IEC 61000-4-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3<br />2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3<br />0.9 V/m (1 V/m) 2 GHz...3 GHz IEC 61000-4-3 | Resistance to magnetic fields | 98.4 A/m (30 A/m) 50/60 Hz IEC 61000-4-8 |
| Resistance to fast transients | 3 kV power lines (DC) DC)IEC 61000-4-4<br />2 kV I/O linesIEC 61000-4-4 | Surge withstand | 1 kV power lines (DC) differential mode IEC 61000-4-5 DC<br />1 kV power lines (DC) common mode IEC 61000-4-5 DC |
| Resistance to conducted disturbances | 10 V 0.15...80 MHz IEC 61000-4-6 | Electromagnetic emission | Radiated emissions 50 dBµV/m class A 24 V DC)30…230 Hz IEC 61131-3<br />Radiated emissions 57 dBµV/m class A 24 V DC)230…1000 Hz IEC 61131-3 |
| Ambient Air Temperature for Operation | 14…131 °F (-10…55 °C) horizontal installation | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative humidity | 10…95 %, without condensation in operation)<br />10…95 %, without condensation in storage) | IP degree of protection | IP20 terminals)IEC 60529 |
| Pollution degree | 2 | Operating altitude | 0...6561.68 ft (0...2000 m) |
| Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) | Vibration resistance | +/- 3.5 mm 5…150 Hz)IEC 60068-2-6 |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27 | Mechanical robustness | Bumps 6 ms 300 shocks 25 gn) IEC 60068-2-27 |
Specifications may be subject to change without notice
