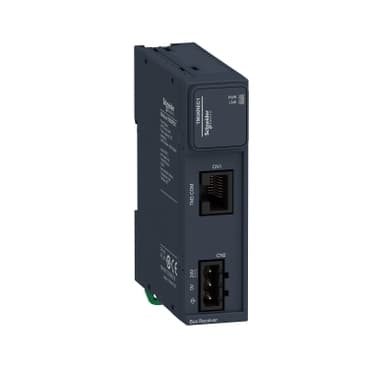

TM3XREC1
Product ID:34123
Updated: 2026/7/15
Key Features
- 1Expand your PLC system with reliable digital and analog I/O.
- 2Ensure stable operation with 24VDC power compatibility.
- 3Facilitate efficient data transfer via RS485 communication.
- 4Save panel space with a compact, DIN-rail mountable design.
- 5Integrate seamlessly with Modicon M221, M241, and M251 platforms.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon TM3 | Product or Component Type | Remote receiver module |
| Range Compatibility | Modicon M221<br />Modicon M251<br />Modicon M241<br />Modicon M262 | [Us] rated supply voltage | 24 V DC external supply - 15...20 %) |
| Maximum Number of I/O Expansion Module | 7 | Power supply output current | 560 mA 5 V expansion bus<br />560 mA 24 V expansion bus |
| Current consumption | 40 mA 24 V DC via bus connector | Maximum power dissipation in W | 1 W |
| Cable distance between devices | 0.02…0.2 in (0.5…5 mm) extension cable 2 RJ45 between receiver and transmitter | Local signalling | for power supply 1 LED (green)<br /> for link status 1 LED (green) |
| Electrical connection | RJ45 connector for connecting the bus transmitter<br /> removable screw terminal block, 3 for connecting the 24 V DC power supply | marking | CE |
| Resistance to electrostatic discharge | 8 kV in air IEC 61000-4-2<br />6 kV on contact IEC 61000-4-2 | Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3<br />2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3<br />0.9 V/m (1 V/m) 2...2.7 GHz IEC 61000-4-3 |
| Resistance to conducted disturbances | 10 V 0.15...80 MHz IEC 61000-4-6<br />3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL) | Electromagnetic emission | Radiated emissions 40 dBμV/m QP class A 10 m)30…230 MHz IEC 55011<br />Radiated emissions 47 dBμV/m QP class A 10 m)230…1000 MHz IEC 55011 |
| Mounting support | Top hat type TH35-15 rail IEC 60715<br />Top hat type TH35-7.5 rail IEC 60715<br /> plate or panel with fixing kit | Height | 3.5 in (90 mm) |
| Depth | 2.9 in (73.3 mm) | Width | 0.93 in (23.65 mm) |
| Net Weight | 0.165 lb(US) (0.075 kg) | Standards | Class I Division 2 Groups A/B/C/D CSA C22.2 No 213<br />Class I Division 2 Groups A/B/C UL 1604<br /> CSA C22.2 No 142<br /> IEC 61131-2<br /> UL 508 |
| Product Certifications | Merchant Navy<br />GOST<br />C-tick<br />CSA HazLoc<br />CE<br />UKCA<br />RCM<br />EAC<br />cULus | Ambient air temperature for operation | 14…131 °F (-10…55 °C) horizontal installation)<br />14…122 °F (-10…50 °C) vertical installation) |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Relative Humidity | 5…95 % without condensation |
| IP degree of protection | IP20 with protective cover in place | Pollution degree | 2 |
| Operating altitude | 0...6561.68 ft (0...2000 m) | Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) |
| Vibration resistance | 3.5 mm 5…8.4 Hz DIN rail<br />3 gn 8.4…150 Hz DIN rail<br />3.5 mm 5…8.4 Hz panel<br />3 gn 8.4…150 Hz panel | Shock resistance | 15 gn 11 ms |
