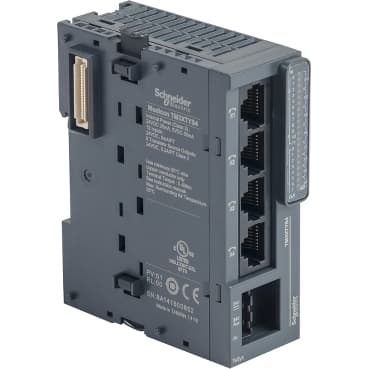

TM3XTYS4
Product ID:34125
Updated: 2026/7/15
Key Features
- 1Integrate seamlessly with TeSys U and D systems for precise motor control.
- 2Support multiple devices with 12 input channels and 8 output channels.
- 3Ensure reliable power with a 24V DC supply and removable terminal block.
- 4Connect securely to motor starters using four built-in RJ45 connectors.
- 5Install easily in compact spaces with a simple interlocking mechanism.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon TM3 | Product or Component Type | Parallel interface module |
| Product Specific Application | TeSys U | Range Compatibility | Modicon M221<br />Modicon M251<br />Modicon M241<br />Modicon M262 |
| [Us] rated supply voltage | 24 V DC external supply - 15...20 %) | Number of input channels | 12 |
| Number of output channels | 8 | Current consumption | 5 mA 5 V DC via bus connector at state on<br />35 mA 5 V DC via bus connector at state off<br />0 mA 24 V DC via bus connector at state on<br />10 mA 24 V DC via bus connector at state off<br />1200 mA 24 V DC external power supply at state on |
| Input voltage limits | 19.2...28.8 V per input | Input current limits | 5 mA per input |
| Response time | < 10 ms turn-on input<br />< 10 ms turn-off input | Output voltage | 24 V DC transistor output |
| Maximum load current | 800 mA per channel starting mode 100 ms<br />300 mA per channel normal mode | Insulation | Between the RJ45 connectors and internal logic 500 V AC<br />Non-insulated between RJ45 connectors |
| Output protection type | Against overload current limiter | Reset | Automatic reset |
| Local signalling | 3 LEDs green per channel input status<br />2 LEDs green per channel output status | Electrical connection | 3 x 2.5 mm² removable screw terminal block pitch 5.08 mm for connecting the 24 V DC power supply<br /> 4 RJ45 connectors for connecting the motor starters |
| Mounting support | Top hat type TH35-15 rail IEC 60715<br />Top hat type TH35-7.5 rail IEC 60715<br /> plate or panel with fixing kit | Height | 3.5 in (90 mm) |
| Depth | 3.3 in (85 mm) | Width | 1.2 in (30 mm) |
| Net Weight | 0.254 lb(US) (0.115 kg) | Product Certifications | CE<br />cULus<br />UKCA<br />RCM<br />EAC |
| marking | CE | Resistance to electrostatic discharge | 8 kV in air EN/IEC 61000-4-2<br />4 kV on contact EN/IEC 61000-4-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80 MHz...1 GHz EN/IEC 61000-4-3<br />2.7 V/m (3 V/m) 1.4 GHz...2 GHz EN/IEC 61000-4-3<br />0.9 V/m (1 V/m) 2 GHz...3 GHz EN/IEC 61000-4-3 | Resistance to magnetic fields | 98.4 A/m (30 A/m) 50/60 Hz EN/IEC 61000-4-8 |
| Resistance to fast transients | 1 kV inputEN/IEC 61000-4-4<br />1 kV outputEN/IEC 61000-4-4 | Surge withstand | 1 kV input common mode EN/IEC 61000-4-5<br />1 kV output common mode EN/IEC 61000-4-5 |
| Resistance to conducted disturbances | 10 V 0.15...80 MHz EN/IEC 61000-4-6<br />3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL) | Electromagnetic emission | Radiated emissions 40 dBμV/m QP class A 10 m)30…230 MHz EN/IEC 55011<br />Radiated emissions 47 dBμV/m QP class A 10 m)230…1000 MHz EN/IEC 55011 |
| Ambient Air Temperature for Operation | 14…95 °F (-10…35 °C) vertical installation<br />14…131 °F (-10…55 °C) horizontal installation | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative humidity | 10…95 %, without condensation in operation)<br />10…95 %, without condensation in storage) | IP degree of protection | IP20 with protective cover in place |
| Pollution degree | 2 | Operating altitude | 0...6561.68 ft (0...2000 m) |
| Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) | Vibration resistance | 3.5 mm 5…8.4 Hz DIN rail<br />3 gn 8.4…150 Hz DIN rail<br />3.5 mm 5…8.4 Hz panel<br />3 gn 8.4…150 Hz panel |
| Shock resistance | 15 gn 11 ms |
Specifications may be subject to change without notice
