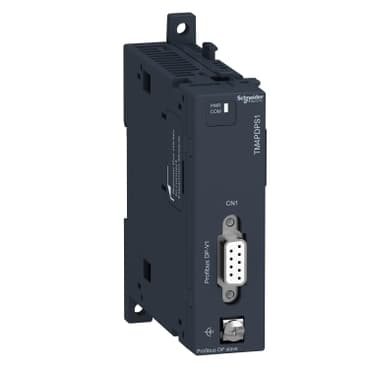

TM4PDPS1
Product ID:34127
Updated: 2026/4/4
Key Features
- 1Achieve high-speed communication with up to 12 Mbit/s transfer rates. 2、Ensure robust connectivity via a 9-pin SUB-D female PROFIBUS DP connector. 3、Integrate seamlessly with Modicon M241 and M251 logic controllers. 4、Monitor status easily with green, yellow, and red LED indicators. 5、Protect against dust and water ingress with an IP20-rated durable design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product or Component Type | Profibus DP communication module | Range Compatibility | Modicon M251<br />Modicon M241 |
| Product compatibility | Modicon M241 logic controller<br />Modicon M251 logic controller | Current consumption | 290 mA 5 V DC communication bus |
| Power dissipation in W | 1.5 W | Integrated connection type | Profibus DP female SUB-D 9 |
| Transmission rate | 1.5 Mbit/s 656.2 ft (200 m)<br />500 kbit/s 1312.3 ft (400 m)<br />187.5 kbit/s 3280.8 ft (1000 m)<br />9.6...93.75 kbit/s 3937.008 ft (1200 m)<br />3...12 Mbit/s 328.08 ft (100 m) | communication port protocol | Profibus DP V0<br />Profibus DP V1 |
| Insulation | Between bus and internal logic 1000 V DC | Local signalling | for power supply 1 LED (green/yellow)<br /> for communication 1 LED (green/red) |
| Electrical connection | Screw connector terminal for connecting the functional ground<br />SUB-D 9 1 female connector for connecting Profibus | Marking | CE |
| Surge withstand | 1 kV power lines (DC) common mode IEC 61000-4-5<br />2 kV power lines (AC) common mode IEC 61000-4-5<br />2 kV relay output common mode IEC 61000-4-5<br />1 kV I/O common mode IEC 61000-4-5<br />1 kV shielded cable common mode IEC 61000-4-5<br />0.5 kV power lines (DC) differential mode IEC 61000-4-5<br />1 kV power lines (AC) differential mode IEC 61000-4-5<br />1 kV relay output differential mode IEC 61000-4-5<br />0.5 kV I/O differential mode IEC 61000-4-5 | Mounting support | Top hat type TH35-15 rail IEC 60715<br />Top hat type TH35-7.5 rail IEC 60715<br /> plate or panel with fixing kit |
| Width | 1.0 in (25 mm) | Height | 3.5 in (90 mm) |
| Depth | 3.5 in (90 mm) | Net Weight | 0.2 lb(US) (0.1 kg) |
| Standards | IEC 61131-2<br />UL 508<br />EIA-485 | Product Certifications | C-tick<br />cULus |
| Resistance to electrostatic discharge | 8 kV in air IEC 61000-4-2<br />4 kV on contact IEC 61000-4-2<br />8 kV in air Marine specification (LR, ABS, DNV, GL)<br />6 kV on contact Marine specification (LR, ABS, DNV, GL) | Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80 MHz...1 GHz IEC 61000-4-3<br />2.7 V/m (3 V/m) 1.4 GHz...2 GHz IEC 61000-4-3<br />0.9 V/m (1 V/m) 2...2.7 GHz IEC 61000-4-3 |
| Resistance to fast transients | 2 kV IEC 61000-4-4 power lines)<br />2 kV IEC 61000-4-4 relay output)<br />1.5 kV IEC 61000-4-4 I/O)<br />1 kV IEC 61000-4-4 Ethernet line)<br />1 kV IEC 61000-4-4 serial link) | Resistance to conducted disturbances | 10 V 0.15...80 MHz IEC 61000-4-6<br />3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL)<br />10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL) |
| Electromagnetic emission | Conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15…0.5 MHz IEC 55011<br />Conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5…300 MHz IEC 55011<br />Conducted emissions 120...69 dBµV/m QP power lines)10…150 kHz IEC 55011<br />Conducted emissions 63 dBμV/m QP power lines)1.5…30 MHz IEC 55011<br />Radiated emissions 40 dBμV/m QP class A30…230 MHz IEC 55011<br />Radiated emissions 60...54 dBμV/m QP30…100 MHz Marine specification (LR, ABS, DNV, GL)<br />Radiated emissions 24 dBμV/m QP156…165 MHz Marine specification (LR, ABS, DNV, GL)<br />Conducted emissions 79...63 dBμV/m QP power lines)150…1500 kHz IEC 55011<br />Radiated emissions 47 dBμV/m QP class A230…1000 MHz IEC 55011<br />Radiated emissions 80...50 dμV/m QP150…30000 kHz Marine specification (LR, ABS, DNV, GL)<br />Radiated emissions 54 dBμV/m QP100…2000 MHz Marine specification (LR, ABS, DNV, GL) | Ambient Air Temperature for Operation | 14…131 °F (-10…55 °C) horizontal installation<br />14…122 °F (-10…50 °C) vertical installation |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Relative humidity | 10…95 %, without condensation in operation)<br />10…95 %, without condensation in storage) |
| IP degree of protection | IP20 with protective cover in place | Pollution degree | 2 |
| Operating altitude | 0...6561.68 ft (0...2000 m) | Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) |
| Vibration resistance | 1 mm 5…13.2 Hz symmetrical rail<br />3 gn 8.7…150 Hz symmetrical rail<br />1 mm 5…13.2 Hz panel mounting<br />0.7 gn 13.2…100 Hz panel mounting | Shock resistance | 15 gn 11 ms |
Specifications may be subject to change without notice
