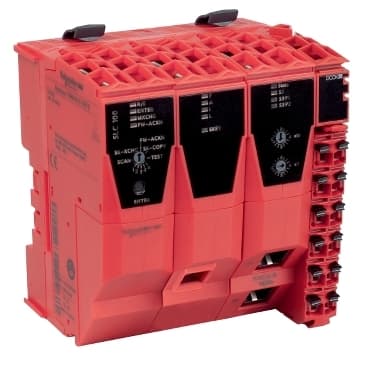

TM5CSLC100FS
Product ID:34049
Updated: 2026/7/15
Key Features
- 1Handle up to 20 safety nodes for complex system integration.
- 2Achieve SIL 3 safety certification for regulatory compliance.
- 3Utilize the SERCOS III interface for high-speed deterministic communication.
- 4Ensure reliable operation with fanless cooling and redundant internal switches.
- 5Install the compact, durable unit with IP20 rating in tight spaces.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon TM5 | Product or Component Type | Controller system |
| Device Application | Safety logic controller | Processor name | Intel Xscale 266 MHz |
| Reverse polarity protection | Yes | Communication network type | SERCOS III Ethernet) |
| Transmission rate | 100 Mbit/s for full duplex | Cycle time | 1 ms |
| Realtime clock | With non-volatile memory | Number of devices | 2 shielded RJ45<br />1 memory key slot |
| Function Available | Support max 20 safety nodes<br />With 2 internal switch | Maximum cable distance between devices | 328.08 ft (100 m) between station |
| Rated voltage | 24 V -15...20 % | Input protection type | Integrated fuse (not interchangeable) |
| Power consumption in W | 5.1 W | Type of cooling | Fanless |
| marking | CE | Safety level | SIL 3 IEC 61508<br />SIL 3 IEC 62061<br />PL = e EN 13849-1 |
| Safety reliability data | PFH < 1E-9<br />MTTFd > 100 years<br />PFD < 1E-5 | Local signalling | for application run or SoSafe debug mode 1 LED (green or orange)<br /> for authorization status 1 LED (green)<br /> for configuration status (Ready) 1 LED (orange)<br /> for firmware status 1 LED (orange)<br /> for boot status 4 LEDs (red)<br /> for memory key status 1 LED (orange) |
| Color | Red | Width | 3.4 in (87.5 mm) |
| Height | 3.9 in (99 mm) | Depth | 3.0 in (75 mm) |
| Net Weight | 0.64 lb(US) (0.29 kg) | Ambient air temperature for operation | 32…113 °F (0…45 °C) vertical installation)<br />32…131 °F (0…55 °C) horizontal installation) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Relative Humidity | 5…95 % without condensation |
| IP Degree of Protection | IP20 | Operating altitude | 0...6561.68 ft (0...2000 m) |
| Standards | IEC 61511<br />IEC 61131-2<br />EN 13849-1<br />IEC 61508<br />IEC 62061 | Product Certifications | GOST-R<br />cULus |
Specifications may be subject to change without notice
