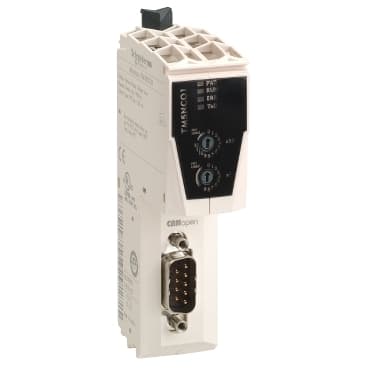

TM5NCO1
Product ID:34051
Updated: 2026/4/5
Key Features
- 1Scale I/O flexibly via the CANopen interface. 2、Swap modules without downtime using hot-swapping. 3、Monitor systems with embedded local and remote diagnostics. 4、Simplify wiring with spring terminals and removable blocks. 5、Program seamlessly via SoMachine with FDT/DTM certification.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon TM5 | Product or Component Type | CANopen communication module |
| Range Compatibility | Modicon LMC058<br />Modicon LMC078<br />Modicon M258 | Product Compatibility | Motion controller<br />Logic controller |
| Integrated connection type | 1 isolated serial link, male SUB-D 9 CANopen, 10, 20, 50, 125, 250, 500, 800, 1000 Kbit/s and autodetected | Current consumption | 300 mA |
| Device composition | Interface module<br />Bus base ordered separately<br />Power supply ordered separately<br />Terminal block ordered separately | Maximum power dissipation in W | 1.5 W |
| Color | White | Local signalling | 1 LED green/red power supply (PWR)<br />1 LED green/red CAN status (RUN)<br />1 LED red CAN status (ERROR)<br />1 LED yellow controller communication status on TM5 bus (TxD) |
| Electrical connection | Removable spring terminal block | marking | CE |
| Net Weight | 0.11 lb(US) (0.05 kg) | Standards | CSA C22.2 No 213<br />IEC 61131-2<br />UL 508<br />CSA C22.2 No 142 |
| Product Certifications | cULus<br />C-tick<br />CSA<br />GOST-R | Ambient air temperature for operation | 14…131 °F (-10…55 °C) without derating horizontal installation)<br />14…140 °F (-10…60 °C) with derating factor horizontal installation)<br />14…122 °F (-10…50 °C) vertical installation) |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Relative Humidity | 5…95 % without condensation |
| IP degree of protection | IP20IEC 61131-2 | Pollution degree | 2 IEC 60664 |
| Operating altitude | 0...6561.68 ft (0...2000 m) | Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) |
| Vibration resistance | 1 gn 8.4…150 Hz DIN rail<br />3.5 mm 5…8.4 Hz DIN rail | Shock resistance | 15 gn 11 ms |
| Resistance to electrostatic discharge | 4 kV on contact IEC 61000-4-2<br />8 kV in air IEC 61000-4-2 | Resistance to electromagnetic fields | 0.9 V/m (1 V/m) 2...2.7 GHz IEC 61000-4-3<br />9.1 V/m (10 V/m) 80 MHz...2 GHz IEC 61000-4-3 |
| Resistance to fast transients | 1 kV IEC 61000-4-4 I/O)<br />1 kV IEC 61000-4-4 shielded cable)<br />2 kV IEC 61000-4-4 power lines) | Surge withstand | 0.5 kV differential mode IEC 61000-4-5<br />1 kV common mode IEC 61000-4-5 |
| Electromagnetic compatibility | EN/IEC 61000-4-6 | Disturbance radiated/conducted | CISPR 11 |
Specifications may be subject to change without notice
