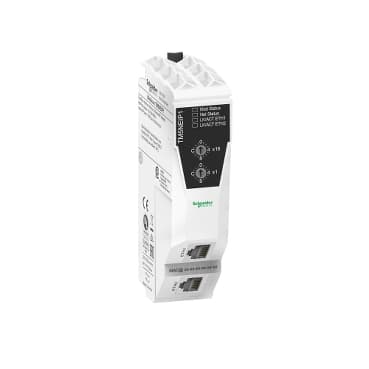

TM5NEIP1
Product ID:34052
Updated: 2026/7/15
Key Features
- 1Configure remote I/O islands easily with Modicon and PacDrive controllers.
- 2Support 10 to 100 Mbps data rates via two isolated RJ45 connectors.
- 3Access an embedded Web server with Achilles L1 cybersecurity for secure data.
- 4Ensure compatibility with Modicon M241/M251 and M262 logic/motion controllers.
- 5Meet IEC, UL, and CSA standards for reliable industrial applications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product or Component Type | Ethernet module | Product Specific Application | Bus coupler module |
| Range Compatibility | Modicon TM5<br />Modicon TM7 | Product Compatibility | Logic controller<br />Motion controller |
| Integrated connection type | Ethernet/IP | Connector type | RJ45 2 Ethernet daisy chain shielded |
| Exchange mode | Half duplex, full duplex, autonegotiation, auto MDIX | Transmission Rate | 10/100 Mbit/s |
| Web server | Embedded | Local signalling | 1 LED green/red module status<br />1 LED green/red network<br />1 LED green Ethernet activity (ETH1)<br />1 LED green Ethernet activity (ETH2) |
| marking | CE<br />EAC<br />UL<br />CSA | Width | 1.0 in (25 mm) |
| Height | 3.9 in (99 mm) | Depth | 3.0 in (75 mm) |
| Net Weight | 0.055 lb(US) (0.025 kg) | Standards | IEC 61131-2:2007<br />UL 508 |
| Electromagnetic compatibility | Emission standard for industrial environments IEC 61000-6-4 2011/A1<br />Immunity for industrial environments IEC 61000-6-2 | Product Certifications | UL 508<br />CSA 22-2 No 142-M1987<br />CSA 22-2 No 213-M1987 |
| Ambient air temperature for operation | -4…140 °F (-20…60 °C) horizontal position)<br />-4…122 °F (-20…50 °C) vertical position) | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 5…95 % non-condensing | IP Degree of Protection | IP20 |
| Pollution degree | 2 IEC 60664 | Environmental characteristic | No corrosion resistance |
| Operating altitude | 0...6561.68 ft (0...2000 m) | Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) |
| Vibration resistance | 3.5 mm constant amplitude 5…84 Hz 35 x 15 mm symmetrical DIN rail<br />9.8 m/s² constant acceleration 8.4…150 Hz | Shock resistance | 147 m/s² 11 ms |
| Resistance to electrostatic discharge | 4 kV contact discharge IEC 61000-4-2<br />8 kV air discharge IEC 61000-4-2 | Resistance to electromagnetic fields | 0.9 V/m (1 V/m) 2...2.7 GHz IEC 61000-4-3<br />9.1 V/m (10 V/m) 80 MHz...2 GHz IEC 61000-4-3 |
| Resistance to fast transients | 1 kV IEC 61000-4-4 I/O)<br />1 kV IEC 61000-4-4 shielded cable)<br />2 kV IEC 61000-4-4 power lines) | Surge withstand | 0.5 kV in differential mode 24 V DC IEC 61000-4-5<br />1 kV in common mode 24 V DC IEC 61000-4-5<br />1 kV in differential mode 230 V AC IEC 61000-4-5<br />2 kV in common mode 230 V AC IEC 61000-4-5 |
| Disturbance radiated/conducted | 10 V 0.15...80 MHz IEC 61000-4-6 |
Specifications may be subject to change without notice
